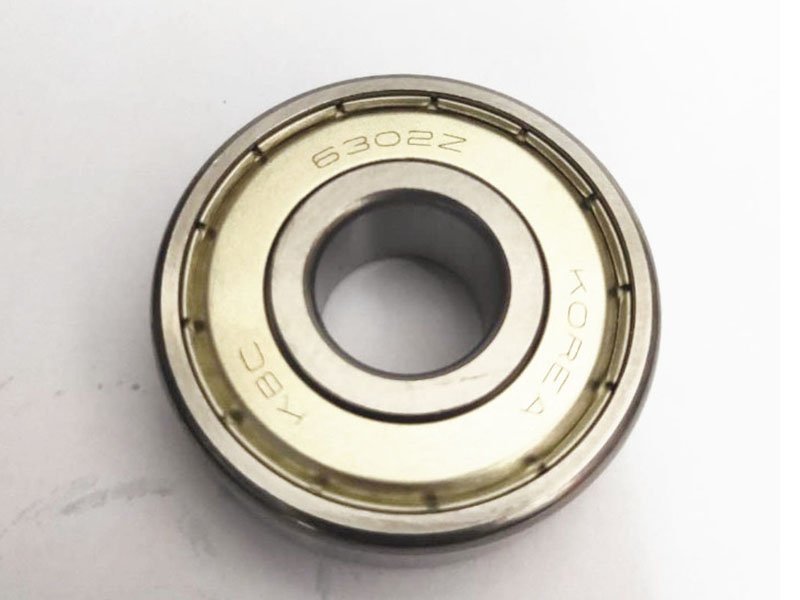

6302ZZ ball bearing
|
Product name |
high precision KBC 6302 4P deep groove ball bearing |
|
Material |
Chrome Steel GCr15 |
|
Inner Diameter |
15mm |
|
Outer Diameter |
42mm |
|
Dimension |
13mm |
|
Weight |
0.08kg/pc |
|
Ball Bearings Feature |
1 Long life span 2 High rotating speed&Low noise |
|
Bearing Package |
Pallet,wooden case,commercial packaging or as customers' requirement. |
|
Service |
OEM service provided |
|
Delivery time |
3-10 days depends on quantity needed |
parameters
| Model | d mm | D mm | H mm | W kg | Dynamic | Static |
| 6300 | 10 | 35 | 11 | 0.053 | 8200 | 8200 |
| 6301 | 12 | 37 | 12 | 0.06 | 9750 | 9700 |
| 6302 | 15 | 42 | 13 | 0.082 | 11400 | 11400 |
| 6303 | 17 | 47 | 14 | 0.115 | 13600 | 13600 |
| 6304 | 20 | 52 | 15 | 0.142 | 15900 | 15900 |
| 6305 | 25 | 62 | 17 | 0.232 | 23600 | 20600 |
| 6306 | 30 | 72 | 19 | 0.346 | 26700 | 26700 |
| 6307 | 35 | 80 | 21 | 0.457 | 33500 | 33500 |
| 6308 | 40 | 90 | 23 | 0.639 | 40700 | 40500 |
| 6309 | 45 | 100 | 25 | 0.837 | 53000 | 53000 |
| 6310 | 50 | 110 | 27 | 1.082 | 62000 | 62000 |
