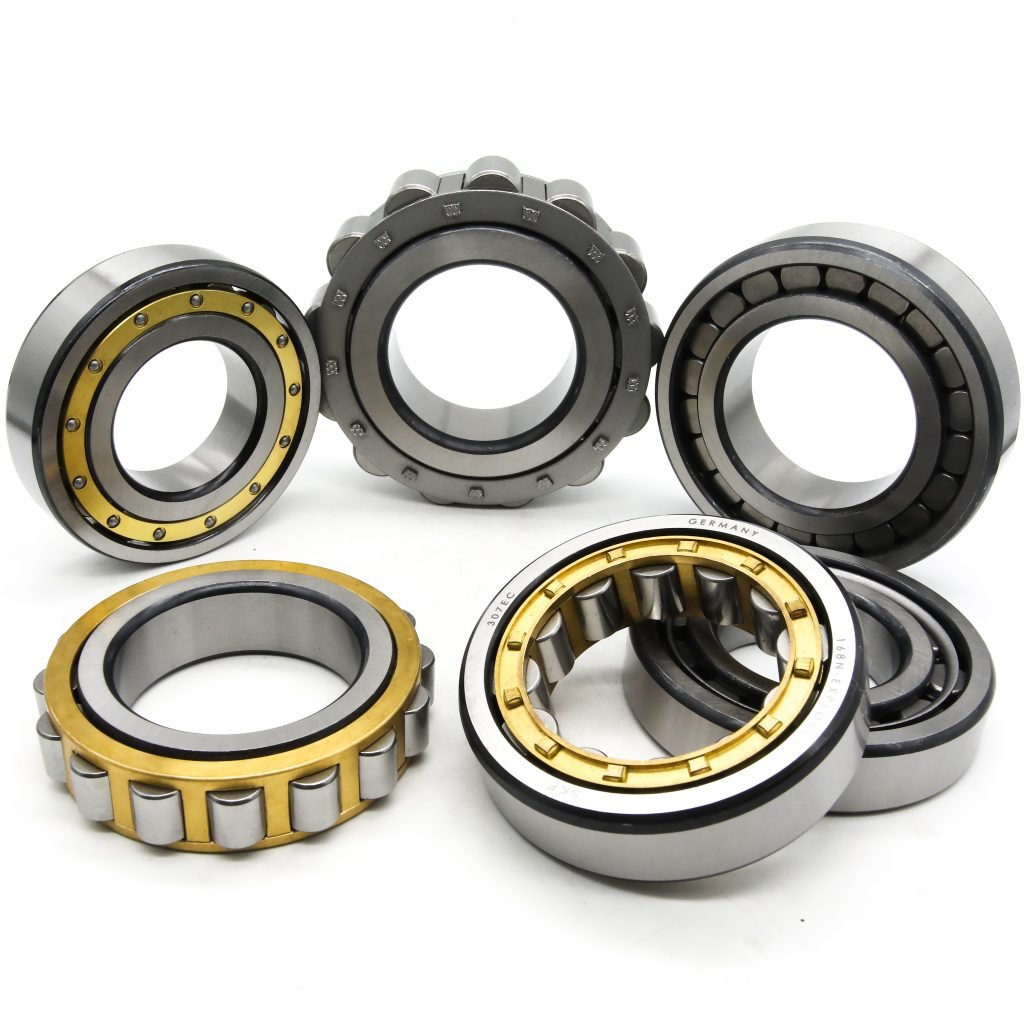

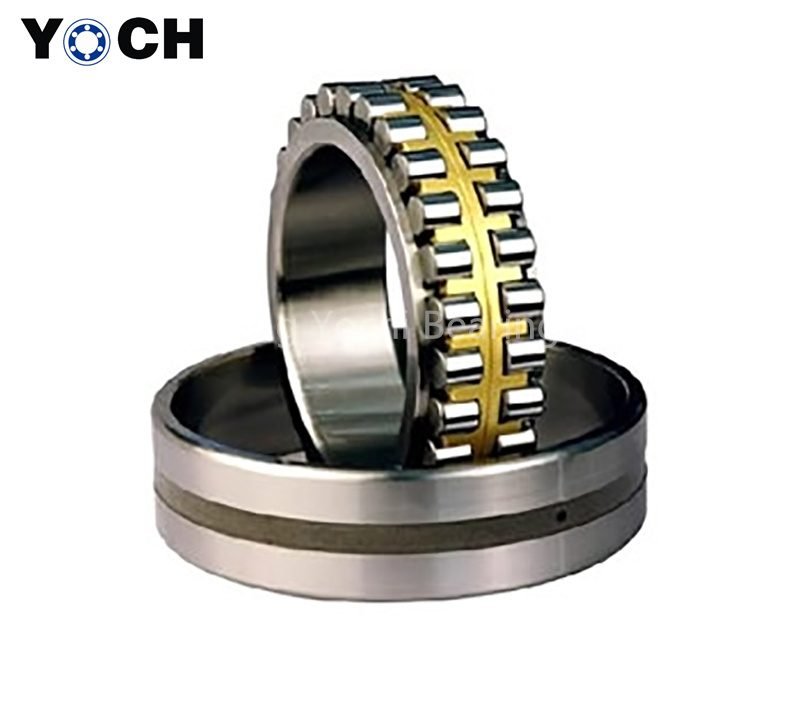

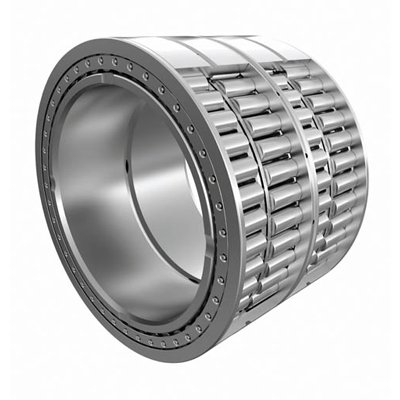

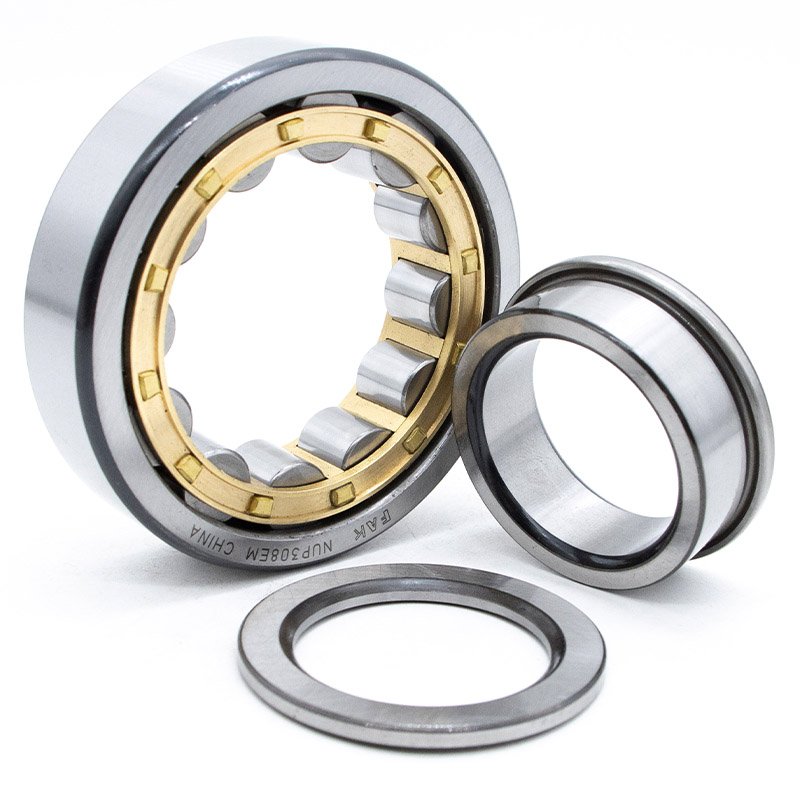

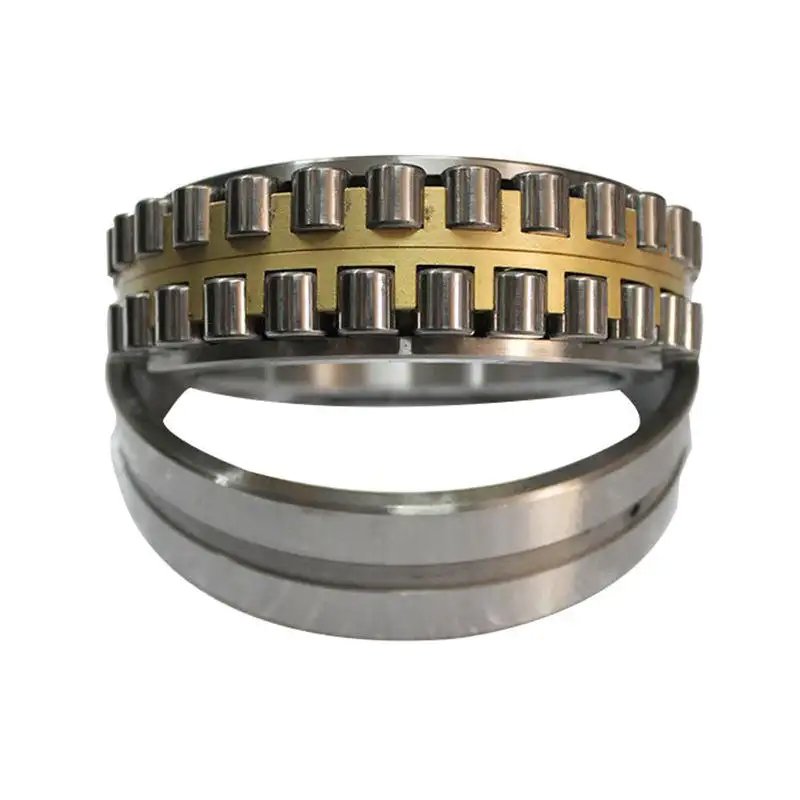

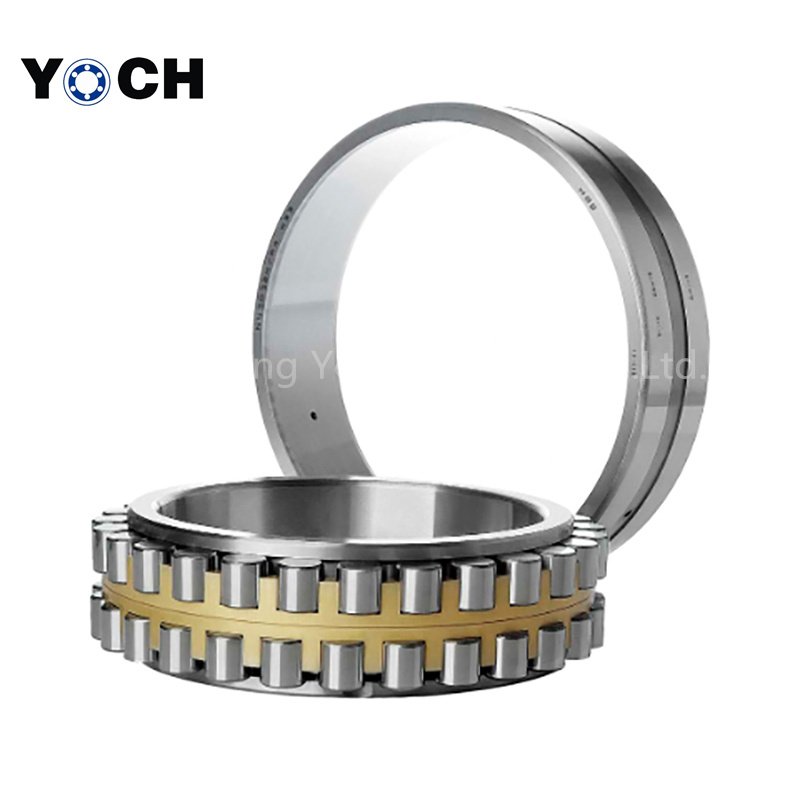

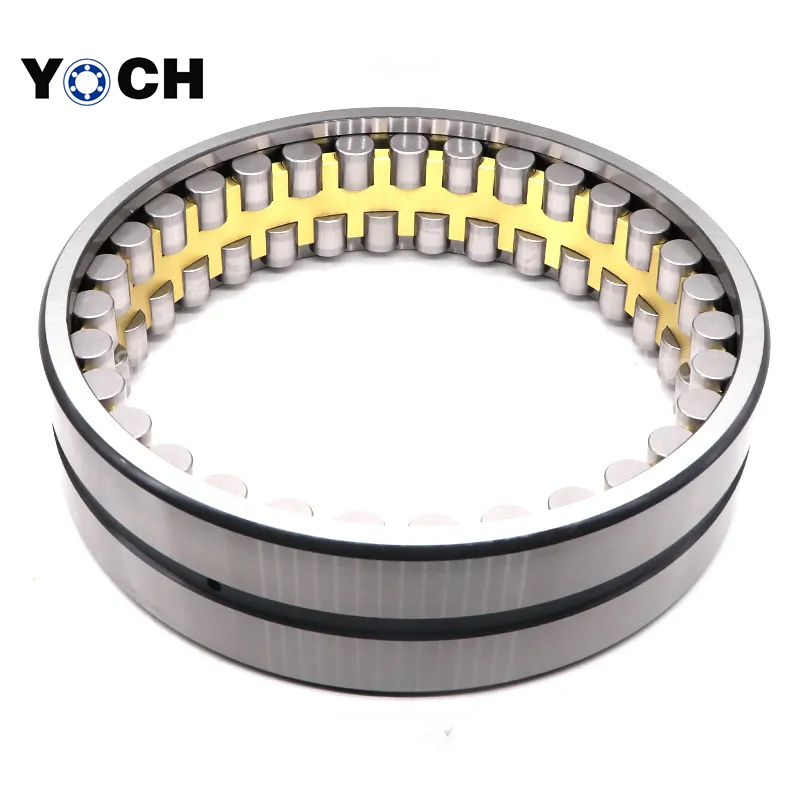

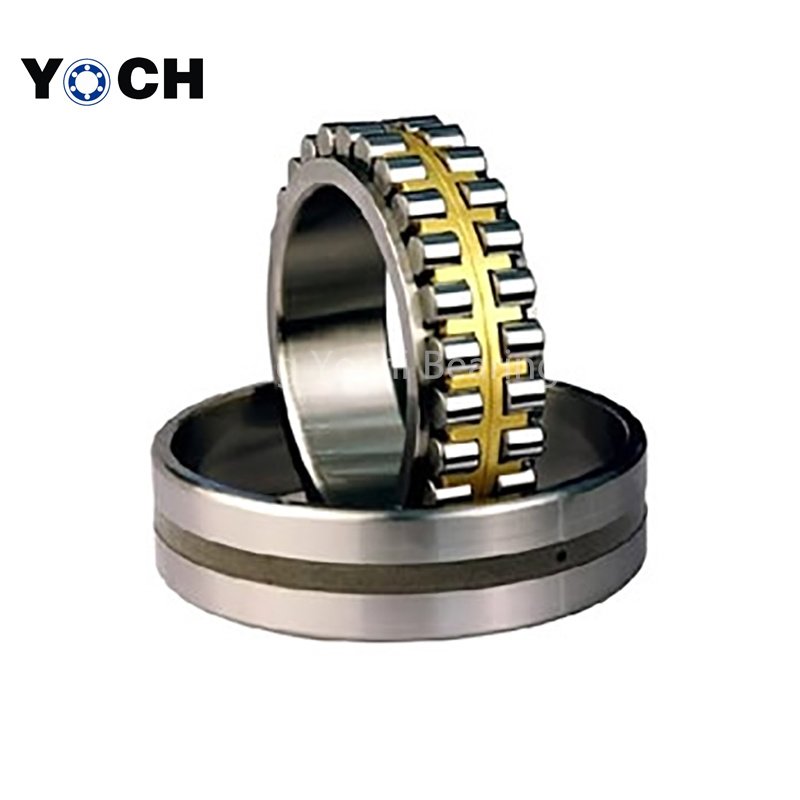

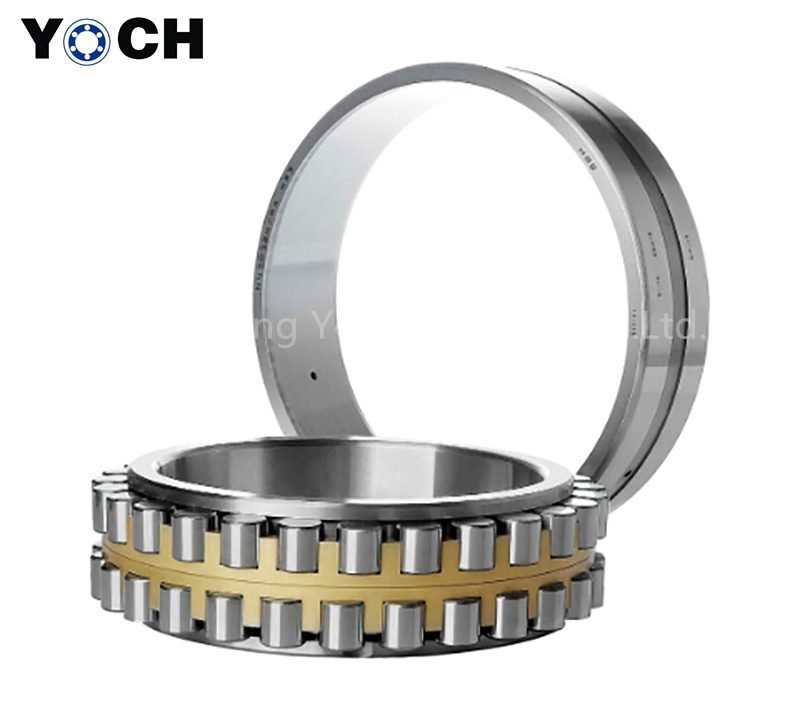

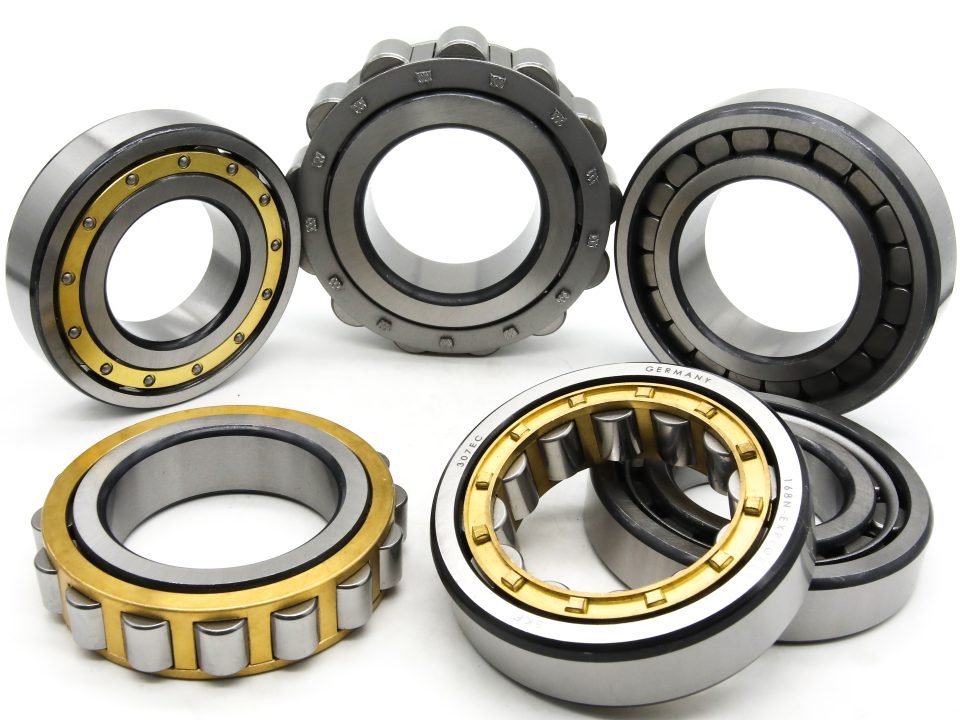

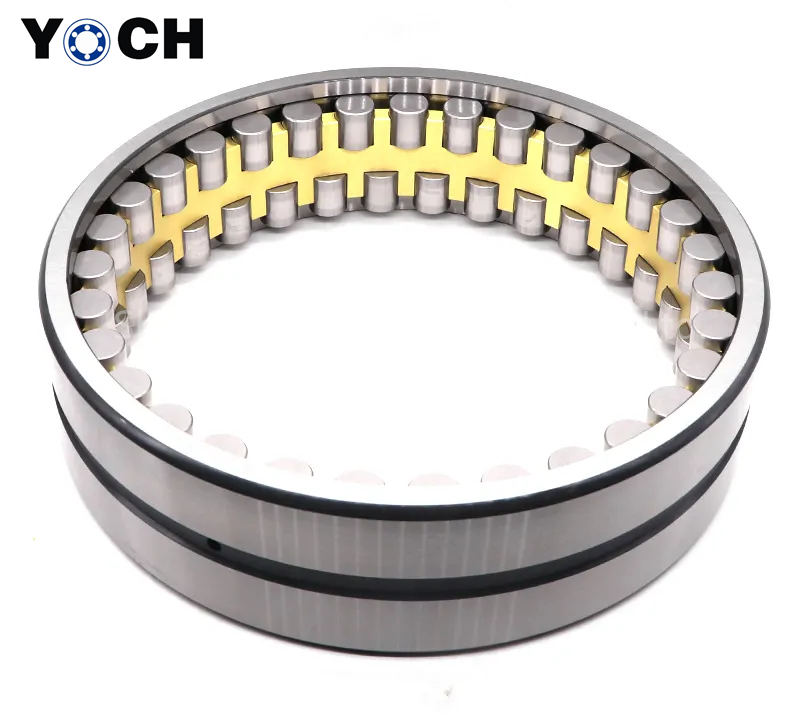

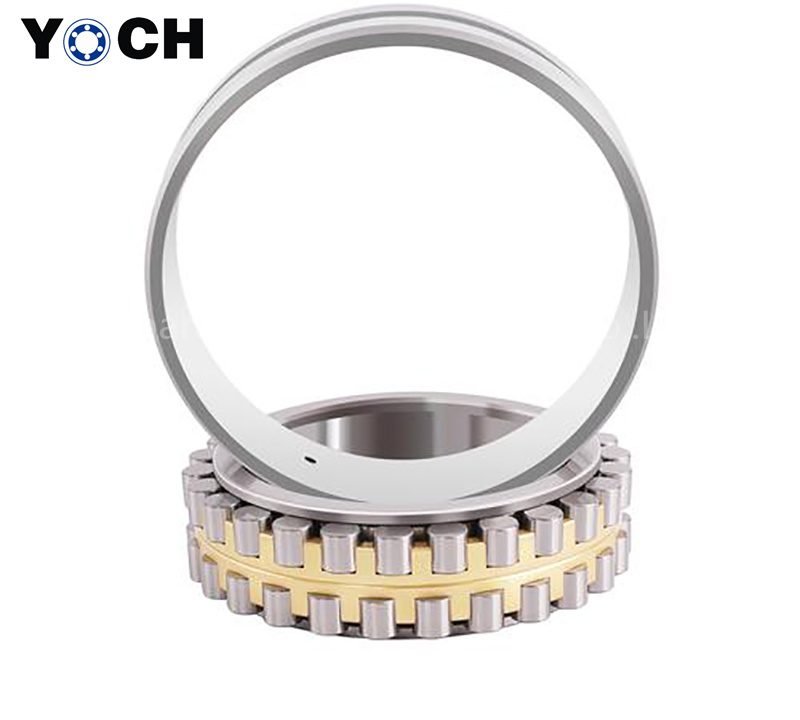

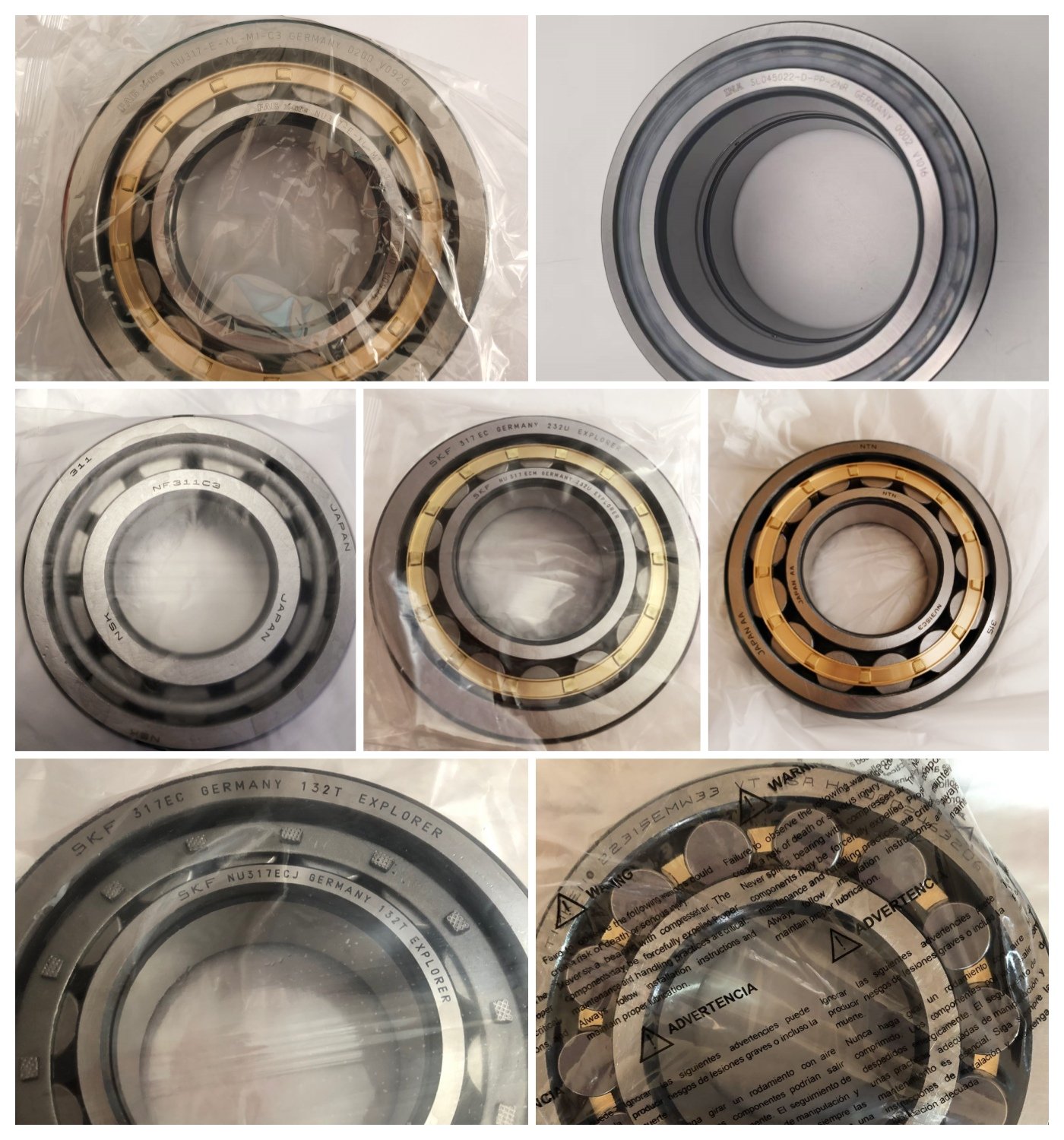

"Cylindrical roller bearings are available in a wide range of designs, series, variants and sizes. The main design differences are the number of roller rows and the inner/outer ring flanges as well as cage designs and materials. The bearings can meet the challenges of applications faced with heavy radial loads and high speeds. Accommodating axial displacement (except for bearings with flanges on both the inner and outer rings), they offer high stiffness, low friction and long service life. Cylindrical roller bearings are also available in sealed or split designs. In sealed bearings, the rollers are protected from contaminants, water and dust, while providing lubricant retention and contaminant exclusion. This provides lower friction and longer service life. Split bearings are intended primarily for bearing arrangements which are difficult to access, such as crank shafts, where they simplify maintenance and replacements. "
Dimensions (mm) | Bearing Numbers | Weight | ||||||||||
d | D | B | r | r1 | FW | EW | NU series | NJ series | NUP series | N series | NF series | (kg) |
20 | 47 | 14 | 1 | 0.6 | 27 | 40 | NU204 | NJ204 | NUP204 | N204 | NF204 | 0.108 |
47 | 14 | 1 | 0.6 | 26.5 | - | NU204E | NJ204E | NUP204E | - | - | 0.112 | |
47 | 18 | 1 | 0.6 | 27 | - | NU2204 | NJ2204 | NUP2204 | - | - | 0.146 | |
47 | 18 | 1 | 0.6 | 26.5 | - | NU2204E | NJ2204E | NUP2204E | - | - | 0.146 | |
52 | 15 | 1.1 | 0.6 | 28.5 | 44.5 | NU304 | NJ304 | NUP304 | N304 | NF304 | 0.147 | |
52 | 15 | 1.1 | 0.6 | 27.5 | - | NU304E | NJ304E | NUP304E | - | - | 0.153 | |
52 | 21 | 1.1 | 0.6 | 28.5 | - | NU2304 | NJ2304 | NUP2304 | - | - | 0.212 | |
52 | 21 | 1.1 | 0.6 | 27.5 | - | NU2304E | NJ2304E | NUP2304E | - | - | 0.215 | |
25 | 47 | 12 | 0.6 | 0.3 | 30.5 | - | NU1005 | - | NUP1005 | - | - | 0.084 |
52 | 15 | 1 | 0.6 | 32 | 45 | NU205 | NJ205 | NUP205 | N205 | NF205 | 0.132 | |
52 | 15 | 1 | 0.6 | 31.5 | - | NU205E | NJ205E | NUP205E | - | - | 0.138 | |
52 | 18 | 1 | 0.6 | 32 | - | NU2205 | NJ2205 | NUP2205 | - | - | 0.163 | |
52 | 18 | 1 | 0.6 | 31.5 | - | NU2205E | NJ2205E | NUP2205E | - | - | 0.166 | |
62 | 17 | 1.1 | 1.1 | 35 | 53 | NU305 | NJ305 | NUP305 | N305 | NF305 | 0.241 | |
62 | 17 | 1.1 | 1.1 | 34 | - | NU305E | NJ305E | NUP305E | - | - | 0.243 | |
62 | 24 | 1.1 | 1.1 | 35 | - | NU2305 | NJ2305 | NUP2305 | - | - | 0.34 | |
62 | 24 | 1.1 | 1.1 | 34 | - | NU2305E | NJ2305E | NUP2305E | - | - | 0.35 | |
30 | 55 | 13 | 1 | 0.6 | 36.5 | - | NU1006 | - | NUP1006 | - | - | 0.121 |
62 | 16 | 1 | 0.6 | 38.5 | 53.5 | NU206 | NJ206 | NUP206 | N206 | NF206 | 0.2 | |
62 | 16 | 1 | 0.6 | 37.5 | - | NU206E | NJ206E | NUP206E | - | - | 0.209 | |
62 | 20 | 1 | 0.6 | 38.5 | - | NU2206 | NJ2206 | NUP2206 | - | - | 0.262 | |
62 | 20 | 1 | 0.6 | 37.5 | - | NU2206E | NJ2206E | NUP2206E | - | - | 0.262 | |
62 | 23.8 | 1 | 1 | 38.5 | - | NU3206 | - | - | - | - | 0.343 |
Dimensions (mm) | Bearing Numbers | Weight | ||||||||||
d | D | B | r | r1 | FW | EW | NU series | NJ series | NUP series | N series | NF series | (kg) |
30 | 72 | 19 | 1.1 | 1.1 | 42 | 62 | NU306 | NJ306 | NUP306 | N306 | NF306 | 0.358 |
72 | 19 | 1.1 | 1.1 | 40.5 | - | NU306E | NJ306E | NUP306E | - | - | 0.361 | |
72 | 27 | 1.1 | 1.1 | 42 | - | NU2306 | NJ2306 | NUP2306 | - | - | 0.5 | |
72 | 27 | 1.1 | 1.1 | 40.5 | - | NU2306E | NJ2306E | NUP2306E | - | - | 0.534 | |
72 | 30.2 | 1.1 | 1.1 | 42 | - | NU3306 | - | - | - | - | 0.65 | |
90 | 23 | 1.5 | 1.5 | 45 | 73 | NU406 | NJ406 | NUP406 | N406 | NF406 | 0.753 | |
35 | 62 | 14 | 1 | 0.6 | 42 | - | NU1007 | - | NUP1007 | - | - | 0.182 |
72 | 17 | 1.1 | 0.6 | 43.8 | 61.8 | NU207 | NJ207 | NUP207 | N207 | NF207 | 0.293 | |
72 | 17 | 1.1 | 0.6 | 44 | - | NU207E | NJ207E | NUP207E | - | - | 0.306 | |
72 | 23 | 1.1 | 0.6 | 43.8 | - | NU2207 | NJ2207 | NUP2207 | - | - | 0.402 | |
72 | 23 | 1.1 | 0.6 | 44 | - | NU2207E | NJ2207E | NUP2207E | - | - | 0.404 | |
72 | 27 | 1.1 | 1.1 | 43.8 | - | NU3207 | - | - | - | - | 0.524 | |
80 | 21 | 1.5 | 1.1 | 46.2 | 68.2 | NU307 | NJ307 | NUP307 | N307 | NF307 | 0.477 | |
80 | 21 | 1.5 | 1.1 | 46.2 | - | NU307E | NJ307E | NUP307E | - | - | 0.482 | |
80 | 31 | 1.5 | 1.1 | 46.2 | - | NU2307 | NJ2307 | NUP2307 | - | - | 0.696 | |
80 | 31 | 1.5 | 1.1 | 46.2 | - | NU2307E | NJ2307E | NUP2307E | - | - | 0.729 | |
80 | 34.9 | 1.5 | 1.5 | 46.2 | - | NU3307 | - | - | - | - | 0.908 | |
100 | 25 | 1.5 | 1.5 | 53 | 83 | NU407 | NJ407 | NUP407 | N407 | NF407 | 1.02 | |
40 | 68 | 15 | 1 | 0.6 | 47 | - | NU1008 | - | NUP1008 | - | - | 0.223 |
80 | 18 | 1.1 | 1.1 | 50 | 70 | NU208 | NJ208 | NUP208 | N208 | NF208 | 0.366 | |
80 | 18 | 1.1 | 1.1 | 49.5 | - | NU208E | NJ208E | NUP208E | - | - | 0.384 | |
80 | 23 | 1.1 | 1.1 | 50 | - | NU2208 | NJ2208 | NUP2208 | - | - | 0.49 | |
80 | 23 | 1.1 | 1.1 | 49.5 | - | NU2208E | NJ2208E | NUP2208E | - | - | 0.49 |
Boundary Dimensions (mm) | Bearing Numbers | Weight | ||||||||||
d | D | B | r | r1 | FW | EW | NU series | NJ series | NUP series | N series | NF series | (kg) |
40 | 80 | 30.2 | 1.1 | 1.1 | 50 | - | NU3208 | - | - | - | - | 0.711 |
90 | 23 | 1.5 | 1.5 | 53.5 | 77.5 | NU308 | NJ308 | NUP308 | N308 | NF308 | 0.657 | |
90 | 23 | 1.5 | 1.5 | 52 | - | NU308E | NJ308E | NUP308E | - | - | 0.664 | |
90 | 33 | 1.5 | 1.5 | 53.5 | - | NU2308 | NJ2308 | NUP2308 | - | - | 0.956 | |
90 | 33 | 1.5 | 1.5 | 52 | - | NU2308E | NJ2308E | NUP2308E | - | - | 0.962 | |
90 | 36.5 | 1.5 | 1.5 | 53.5 | - | NU3308 | - | - | - | - | 1.19 | |
110 | 27 | 2 | 2 | 58 | 92 | NU408 | NJ408 | NUP408 | N408 | NF408 | 1.3 | |
45 | 75 | 16 | 1 | 0.6 | 52.5 | - | NU1009 | - | NUP1009 | - | - | 0.289 |
85 | 19 | 1.1 | 1.1 | 55 | 75 | NU209 | NJ209 | NUP209 | N209 | NF209 | 0.427 | |
85 | 19 | 1.1 | 1.1 | 54.5 | - | NU209E | NJ209E | NUP209E | - | - | 0.439 | |
85 | 23 | 1.1 | 1.1 | 55 | - | NU2209 | NJ2209 | NUP2209 | - | - | 0.536 | |
85 | 23 | 1.1 | 1.1 | 54.5 | - | NU2209E | NJ2209E | NUP2209E | - | - | 0.536 | |
85 | 30.2 | 1.1 | 1.1 | 55 | - | NU3209 | - | - | - | - | 0.77 | |
100 | 25 | 1.5 | 1.5 | 58.5 | 86.5 | NU309 | NJ309 | NUP309 | N309 | NF309 | 0.87 | |
100 | 25 | 1.5 | 1.5 | 58.5 | - | NU309E | NJ309E | NUP309E | - | - | 0.909 | |
100 | 36 | 1.5 | 1.5 | 58.5 | - | NU2309 | NJ2309 | NUP2309 | - | - | 1.25 | |
100 | 36 | 1.5 | 1.5 | 58.5 | - | NU2309E | NJ2309E | NUP2309E | - | - | 1.32 | |
100 | 39.7 | 1.5 | 1.5 | 58.5 | - | NU3309 | - | - | - | - | 1.59 | |
50 | 80 | 16 | 1 | 0.6 | 57.5 | - | NU1010 | - | NUP1010 | - | - | 0.306 |
90 | 20 | 1.1 | 1.1 | 60.4 | 80.4 | NU210 | NJ210 | NUP210 | N210 | NF210 | 0.479 | |
90 | 20 | 1.1 | 1.1 | 59.5 | - | NU210E | NJ210E | NUP210E | - | - | 0.497 | |
90 | 23 | 1.1 | 1.1 | 60.4 | - | NU2210 | NJ2210 | NUP2210 | - | - | 0.58 | |
90 | 23 | 1.1 | 1.1 | 59.5 | - | NU2210E | NJ2210E | NUP2210E | - | - | 0.58 |
Dimensions (mm) | Bearing Numbers | Weight | ||||||||||
d | D | B | r | r1 | FW | EW | NU series | NJ series | NUP series | N series | NF series | (kg) |
50 | 90 | 30.2 | 1.1 | 1.1 | 60.4 | - | NU3210 | - | - | - | - | 0.829 |
110 | 27 | 2 | 2 | 65 | 95 | NU310 | NJ310 | NUP310 | N310 | NF310 | 1.15 | |
110 | 27 | 2 | 2 | 65 | - | NU310E | NJ310E | NUP310E | - | - | 1.15 | |
110 | 40 | 2 | 2 | 65 | - | NU2310 | NJ2310 | NUP2310 | - | - | 1.69 | |
110 | 40 | 2 | 2 | 65 | - | NU2310E | NJ2310E | NUP2310E | - | - | 1.76 | |
110 | 44.4 | 2 | 2 | 65 | - | NU3310 | - | - | - | - | 2.14 | |
55 | 90 | 18 | 1.1 | 1 | 64.5 | - | NU1011 | - | NUP1011 | - | - | 0.445 |
100 | 21 | 1.5 | 1.1 | 66.5 | 88.5 | NU211 | NJ211 | NUP211 | N211 | NF211 | 0.64 | |
100 | 21 | 1.5 | 1.1 | 66 | - | NU211E | NJ211E | NUP211E | - | - | 0.65 | |
100 | 25 | 1.5 | 1.1 | 66.5 | - | NU2211 | NJ2211 | NUP2211 | - | - | 0.78 | |
100 | 25 | 1.5 | 1.1 | 66 | - | NU2211E | NJ2211E | NUP2211E | - | - | 0.806 | |
100 | 33.3 | 1.5 | 1.5 | 66.5 | - | NU3211 | - | - | - | - | 1.14 | |
60 | 95 | 18 | 1.1 | 1 | 69.5 | - | NU1012 | - | NUP1012 | - | - | 0.477 |
110 | 22 | 1.5 | 1.5 | 73.5 | 97.5 | NU212 | NJ212 | NUP212 | N212 | NF212 | 0.823 | |
110 | 22 | 1.5 | 1.5 | 72 | - | NU212E | NJ212E | NUP212E | - | - | 0.83 | |
110 | 28 | 1.5 | 1.5 | 73.5 | - | NU2212 | NJ2212 | NUP2212 | - | - | 1.07 | |
110 | 28 | 1.5 | 1.5 | 72 | - | NU2212E | NJ2212E | NUP2212E | - | - | 1.09 | |
110 | 36.5 | 1.5 | 1.5 | 73.5 | - | NU3212 | - | - | - | - | 1.52 | |
65 | 100 | 18 | 1.1 | 1 | 74.5 | - | NU1013 | - | NUP1013 | - | - | 0.506 |
70 | 110 | 20 | 1.1 | 1 | 80 | - | NU1014 | - | NUP1014 | - | - | 0.702 |
Hot Products
- Date
- 22/04/2021

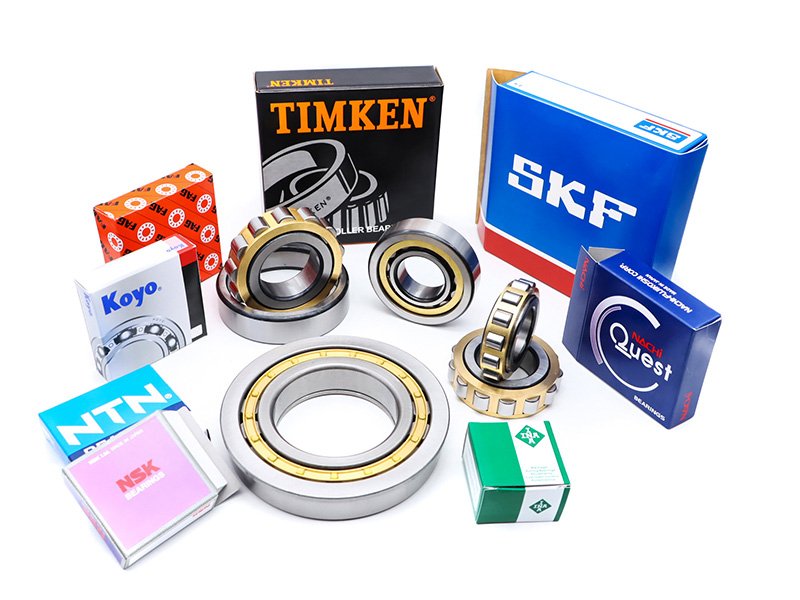

SKF Timken NTN NSK Koyo Brand Cylindrical Roller Bearing Nnu4960
