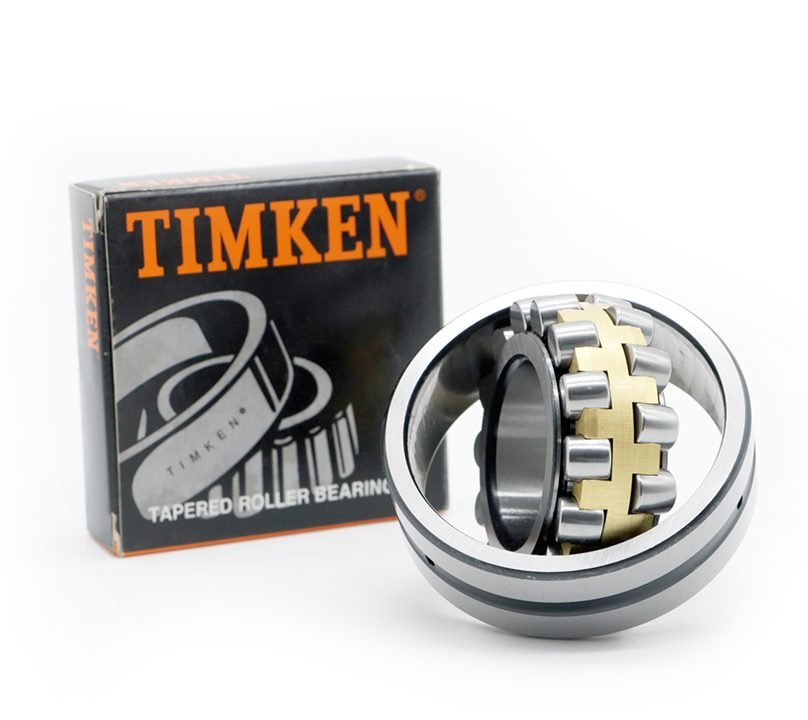

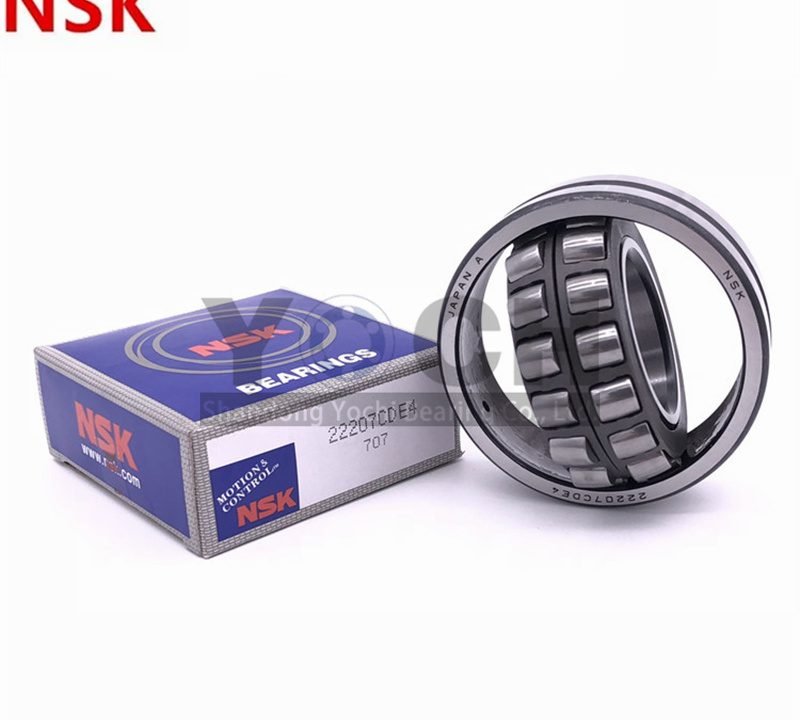

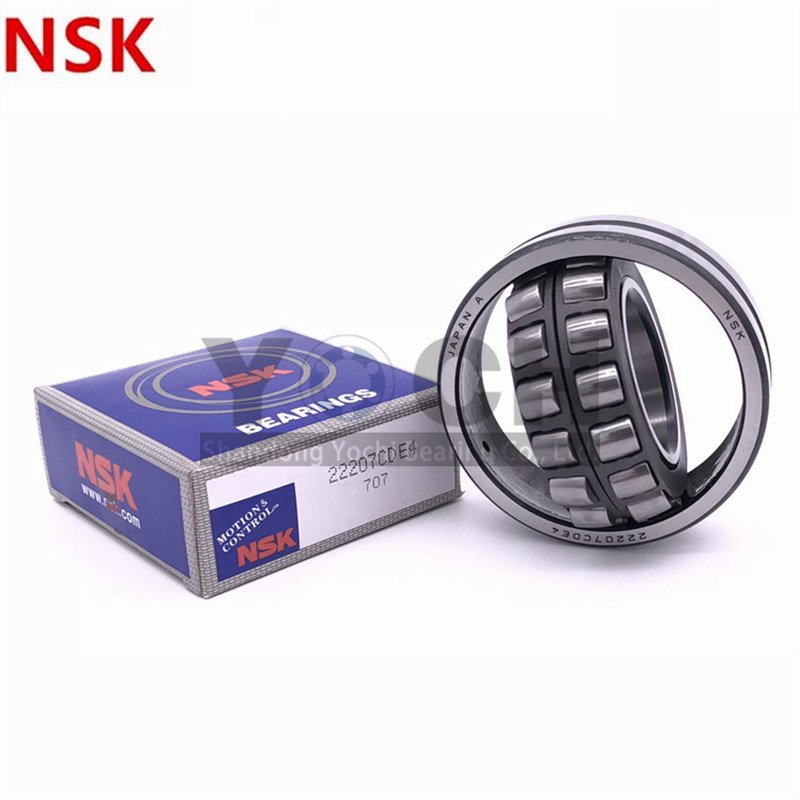

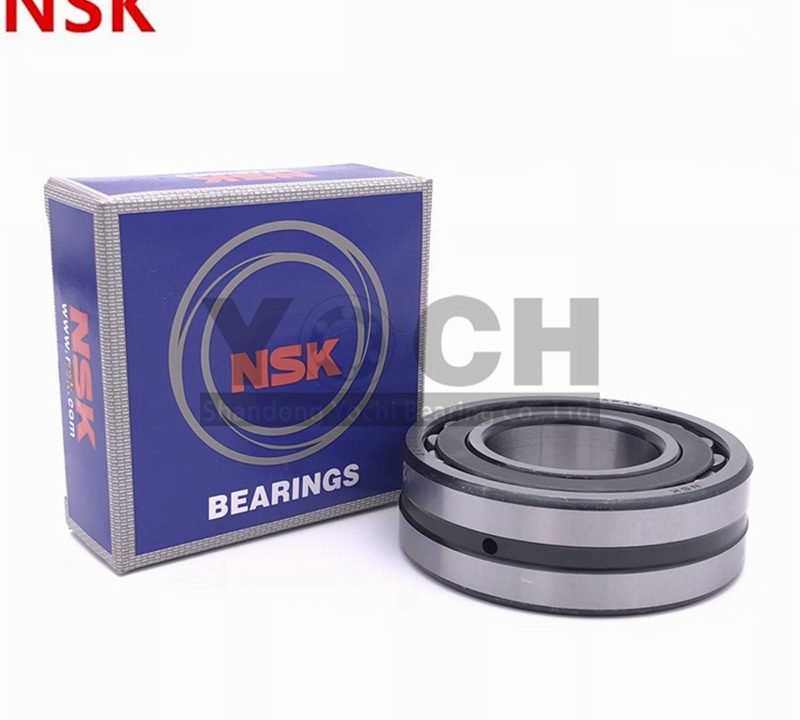

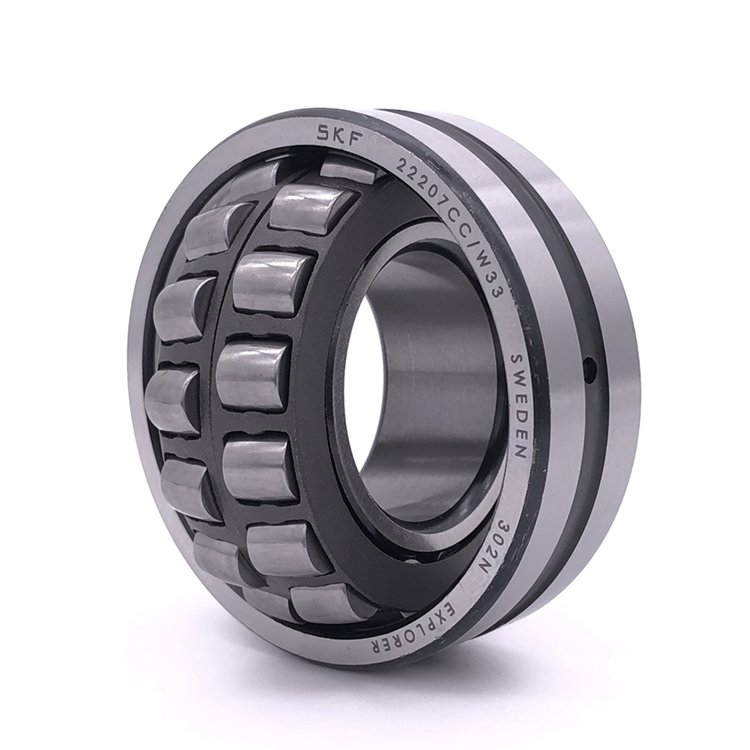

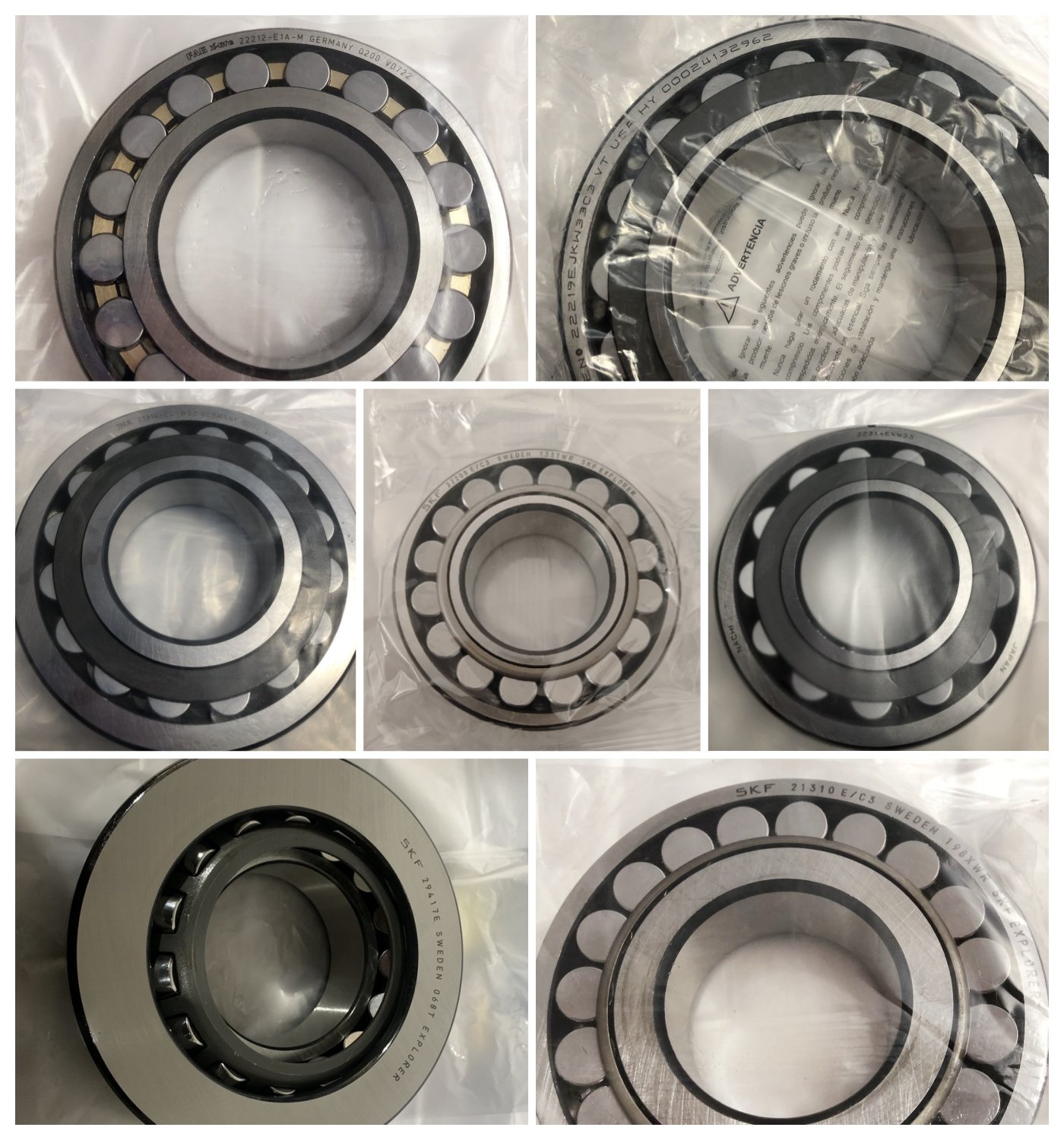

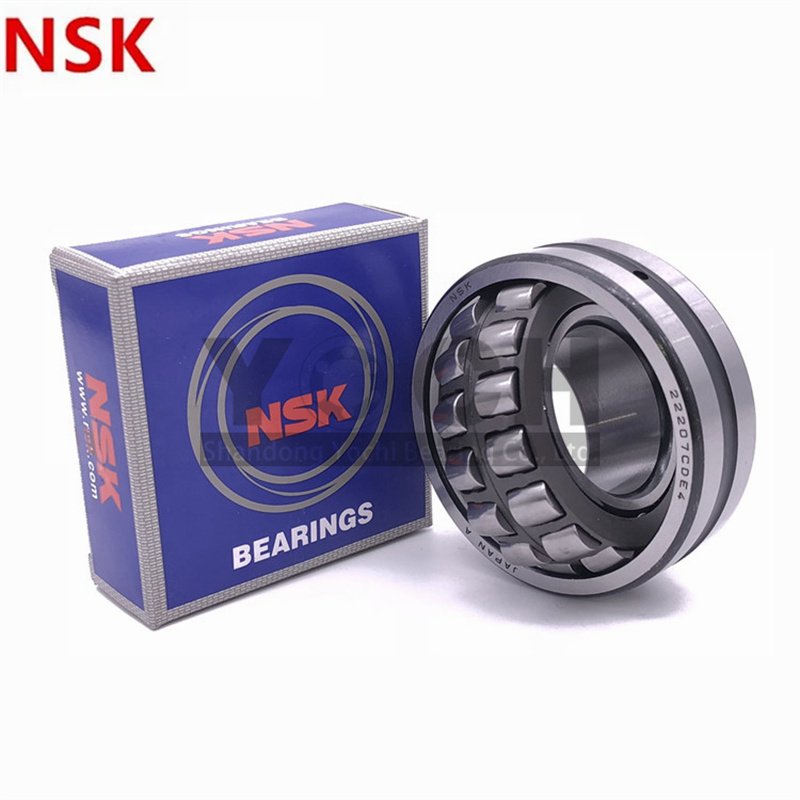

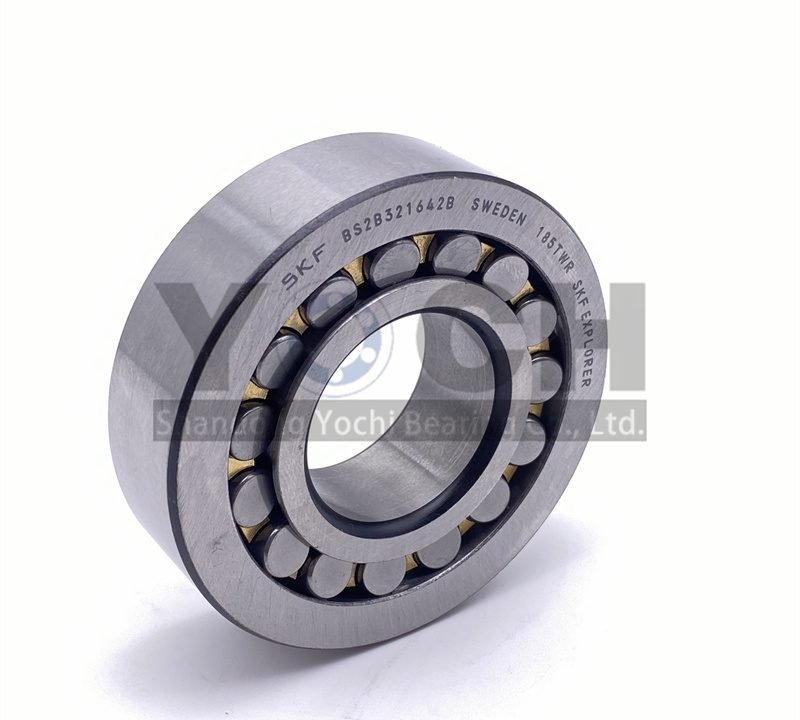

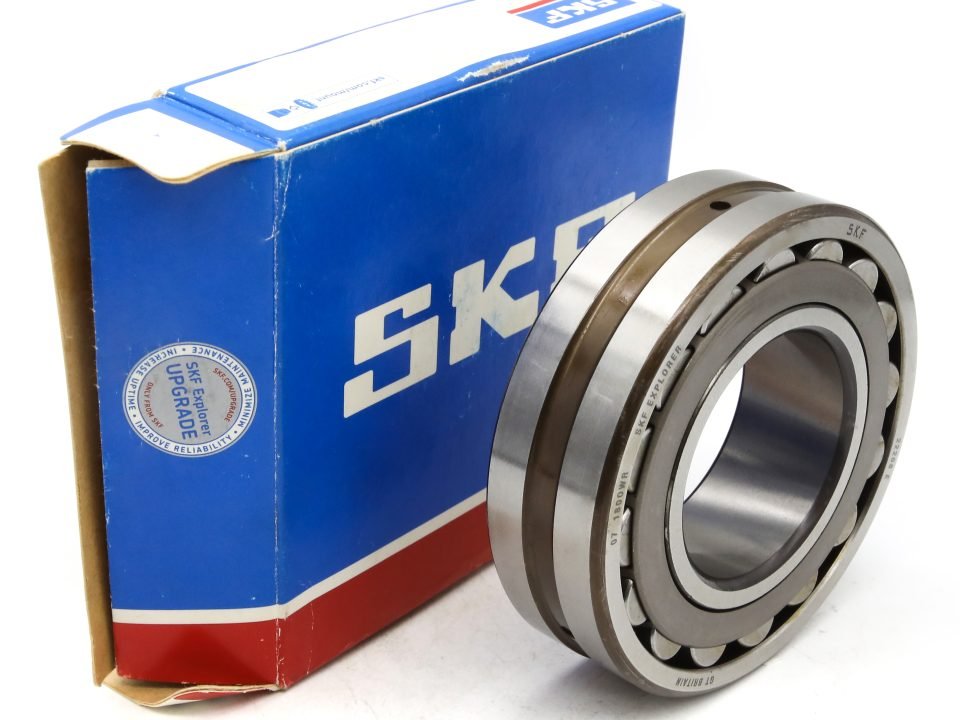

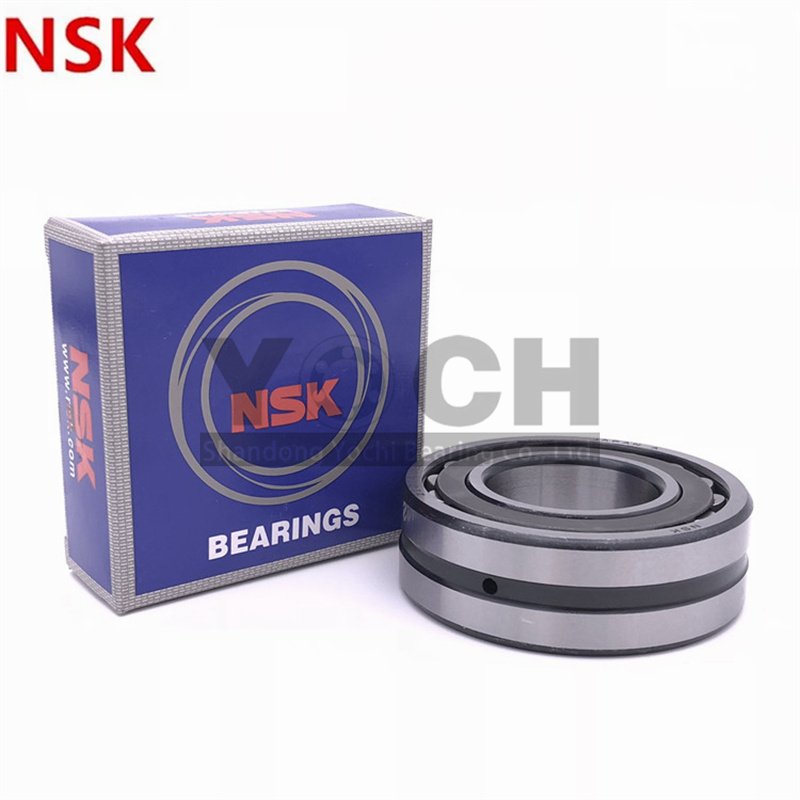

Spherical Roller Bearing

调心滚子

"Dealing with very heavy radial and axial loads in applications prone to misalignment or shaft deflections? Meet the challenge with SKF spherical roller bearings, whose high load carrying capacity and ability to accommodate misalignment help you obtain low maintenance costs and long bearing service life. SKF invented this bearing type in 1919 and our range is the widest in the industry today – both open and sealed. Our assortment includes spherical roller bearings designed for many applications, including wind turbine main shafts, continuous casters, vibratory applications and high-speed applications, as well as bearings with Solid Oil, split bearings, SKF ConCentra roller bearing units, and, for the harshest operating environments, our SKF three-barrier solution."

Send Message Free Samples More Information
Bearing No.
Dimensions(mm)
Weight
d
D
T
kg
22208CA/C3W33
40
80
23
0.54
22209CA/C3W33
45
85
23
0.58
22210CA/C3W33
50
90
23
0.62
22211CA/C3W33
55
100
25
0.84
22212CA/C3W33
60
110
28
1.2
22213CA/C3W33
65
120
31
1.6
22214CA/C3W33
70
125
31
1.7
22215CA/C3W33
75
130
31
1.8
22216CA/C3W33
80
140
33
2.2
22217CA/C3W33
85
150
36
2.7
22218CA/C3W33
90
160
40
3.28
22219CA/C3W33
95
170
43
4.1
22220CA/C3W33
100
180
46
5
22222CA/C3W33
110
200
53
7.2
22224CA/C3W33
120
215
58
8.9
22226CA/C3W33
130
230
64
11.2
22228CA/C3W33
140
250
68
14.5
22230CA/C3W33
150
270
73
18.6
22308CA/C3W33
40
90
33
1
22309CA/C3W33
45
100
36
1.38
22310CA/C3W33
50
110
40
1.85
22311CA/C3W33
55
120
43
2.35
22312CA/C3W33
60
130
46
2.95
22313CA/C3W33
65
140
48
3.55
22314CA/C3W33
70
150
51
4.4
22315CA/C3W33
75
160
55
5.25
22316CA/C3W33
80
170
58
6.39
22317CA/C3W33
85
180
60
7.25
22318CA/C3W33
90
190
64
8.6
22319CA/C3W33
95
200
67
10.1
22320CA/C3W33
100
215
73
13.4
22322CA/C3W33
110
240
80
18
22324CA/C3W33
120
260
86
22
22326CA/C3W33
130
280
93
28.5
Bearing No.
Dimensions(mm)
Weight
d
D
T
KG
21306CA/C3W33
30
72
19
0.412
21307CA/C3W33
35
80
21
0.542
21308CA/C3W33
40
90
23
0.743
21309CA/C3W33
45
100
25
1
21310CA/C3W33
50
110
27
1.3
21311CA/C3W33
55
120
29
1.65
21312CA/C3W33
60
130
31
2.08
21313CA/C3W33
65
140
33
2.57
21314CA/C3W33
70
150
35
3.11
21315CA/C3W33
75
160
37
3.76
21316CA/C3W33
80
170
39
4.47
21322CA/C3W33
110
240
50
11.8
23024CA/C3W33
120
180
46
3.98
23026CA/C3W33
130
200
52
5.85
23028CA/C3W33
140
210
53
6.31
23030CA/C3W33
150
225
56
7.74
23032CA/C3W33
160
240
60
9.43
23034CA/C3W33
170
260
67
12.8
23036CA/C3W33
180
280
74
16.9
23038CA/C3W33
190
290
75
17.7
23040CA/C3W33
200
310
82
22.7
23044CA/C3W33
220
340
90
29.7
23048CA/C3W33
240
360
92
32.4
24024CA/C3W33
120
180
60
5.05
24026CA/C3W33
130
200
69
7.55
24028CA/C3W33
140
210
69
8.01
24030CA/C3W33
150
225
75
10.1
24032CA/C3W33
160
240
80
12.2
24034CA/C3W33
170
260
90
16.7
24036CA/C3W33
180
280
100
22.1
24038CA/C3W33
190
290
100
23
24040CA/C3W33
200
310
109
29.3
24044CA/C3W33
220
340
118
38.1
24048CA/C3W33
240
360
118
40.8

Blog of Spherical Roller Bearing

  • Analysis And Preventive Measures For Ring Grinding Burns (2)
    In the surface process, such as grinding a surface on a vertical single-head grinder, the following factors may cause burns if the operating specifications are correctly followed. a. The grinding wheel shaft moves, increasing the instantaneous grinding amount and causing burns; at this time, the grinding wheel shaft bearing must be tightened or the bearing must be replaced. b. The disk on the workbench jumps or rotates unevenly, which increases the amount of instantaneous grinding and causes burns; various components of the disk reducer, such as worm gears, worms, etc., must be inspected and worn parts replaced.
  • Analysis And Preventive Measures For Ring Grinding Burns (1)
    During the grinding process of the bearing ring, due to the cutting, scoring and frictional effects of the abrasive grains on the workpiece, the metal surface is plastically deformed, and the relative displacement between the metal molecules inside the workpiece generates internal friction and heat; when the grinding wheel is cutting, relative to the workpiece The speed is very high, causing severe external friction with the workpiece surface to generate heat. And because the cutting of each abrasive is instantaneous, the heat is generated instantaneously and cannot be dissipated in time, so the instantaneous temperature in the grinding area is relatively high. High, generally reaching 800~1500℃. If the heat dissipation measures are not good, it is easy to cause burns on the surface of the workpiece, that is, secondary quenching and high-temperature tempering will occur on the surface of the workpiece (generally tens of microns to over microns), which will cause damage. The structure on the surface of the workpiece has been removed, and severe burns can be seen with the naked eye. A severe burnt yellow or black oxide film appears on the surface. Minor burns can only be observed after being etched with dilute acidic solution. The burned area will appear black. Burns can reduce the service life of the workpiece.
  • Machining And Safety Of Magnesium Alloy Parts
    Magnesium alloy with a density of 36% is lighter than aluminum alloy, 73% lighter than zinc alloy, and 77% lighter than steel. It is recognized as the structural metal material with the smallest mass. The machining of small batches of magnesium alloy parts can be carried out on small manually operated machine tools; when processing magnesium alloy parts in large batches and with high efficiency, it will be more economical to use dedicated large-scale automated machining centers or computer numerical control machine tools. Compared with those metal materials with poor machining properties, magnesium alloys with good cutting properties have very outstanding advantages. For magnesium alloys, powerful cutting can be performed at high cutting speeds and large feeds, so that the number of machining hours can be reduced. Therefore, when completing the same task, if magnesium alloy is used as raw material, the number of processing equipment can be reduced, infrastructure investment can be saved, the floor space can be reduced, and labor costs and management expenses can be reduced.

FAQs of Spherical Roller Bearing

1Are you trading company or manufacturer ?
We are factory. Welcome to visit our factory.
2Do you provide Free Samples ?
Yes, we could offer you free samples, but do not pay the cost of freight.
3What's the MOQ ?
The MOQ depends on bearing's model number and price.Usually the total cost will be $1000 at least.
4What's your Payment Terms ?
We highly recommend Trade Assurance order on alibaba. It is safe, convenient, and can make sure the on time delivery. 1 Trade Assurance Order 2 T/T (Bank Wire) 3 Western Union 4 Money Grame 5 Paypal
5How long is your lead-time?
Generally it is 2 to 4 days if the goods are in stock, or it will be about 6 to 15 days depends on quantity.
