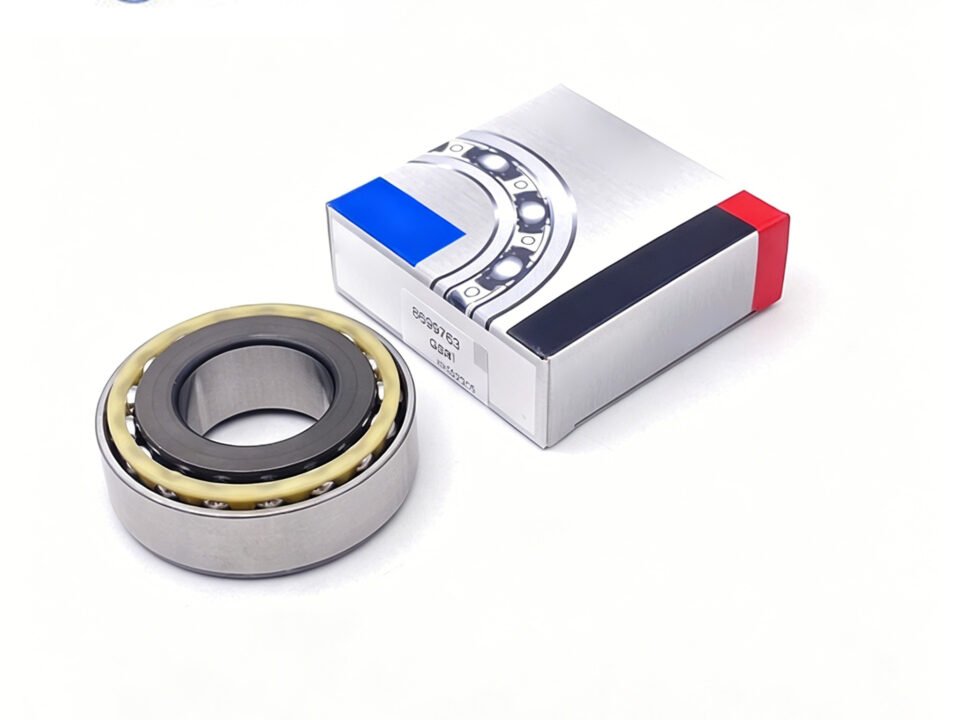

Angular Contact Ball Bearing

IMG_4853

"Angular contact ball bearings have inner and outer ring raceways that are displaced relative to each other in the direction of the bearing axis. This means that these bearings are designed to accommodate combined loads, i.e. simultaneously acting radial and axial loads. The axial load carrying capacity of angular contact ball bearings increases as the contact angle increases. The contact angle is defined as the angle between the line joining the points of contact of the ball and the raceways in the radial plane, along which the combined load is transmitted from one raceway to another, and a line perpendicular to the bearing axis"

Send Message Free Samples More Information

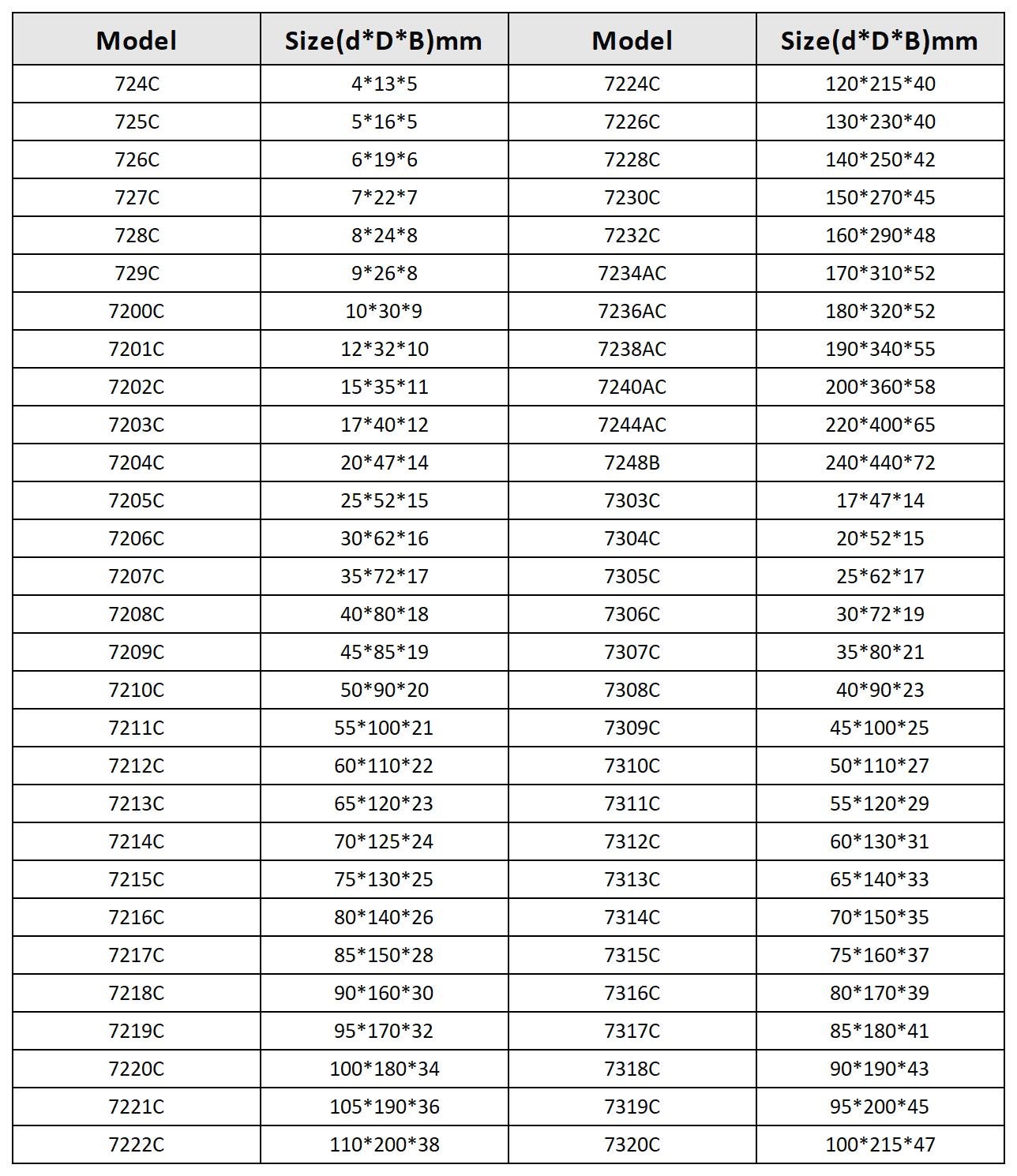

Product List
7020 7340 QJ234 QJ240
7022 7432 QJ238 QJ320
7024 66260 7028AC QJ322
7026 71920 7030AC QJ324
7028 71921 7032AC QJ326
7030 71922 7034AC QJ328
7032 71924 7232AC QJ330
7034 71926 7234AC QJ332
7036 71928 7328B QJ334
7038 71930 7330AC QJ336
7040 71932 QJ1024 QJ338
7044 71934 QJ1026 QJ340
7056 71936 QJ1028 QJF1036
7172 71938 QJ1029 QJF1038
7220 71940 QJ1030 QJF1048
7221 71944 QJ1032 QJF1930
7222 71948 QJ1034 QJF2952
7224 71952 QJ1036 QJF2956
7226 71956 QJ1038 QJF2960
7228 71976 QJ1040 QJF2964
7230 86744 QJ1044 QJF330
7232 7324 QJ1045 QJF3940
7236 7326 QJ1048 QJF3944
7238 7328 QJ1052 QJF3948
7240 7330 QJ1056 QJF3956
7244 7332 QJ1060 QJF9/530
7248 7334 QJ1064 QJF9/560
7260 7336 QJ1068 QJ228
7320 7338 QJ1072 QJ230
7321 7322 QJ220 QJ232
Model Boundary Dimensions 〆 15o 〆 25o Cage Material
d D B Load Rating Limiting Speed Load Rating Limiting Speed
Cr Cor Grease Oil Cr Cor Grease Oil
7000 10 26 8 4.0 2.4 66000 90000 3.8 2.3 59000 89000 Bakelite/Nylon
7001 12 28 8 5.0 3.0 59000 89000 4.8 2.8 55000 84000 Bakelite/Nylon
7002 15 32 9 5.3 3.3 49000 74000 5.1 3.1 44000 66000 Bakelite/Nylon
7003 17 35 10 6.7 4.9 44000 66000 6.4 4.7 39000 59000 Bakelite/Nylon
7004 20 42 12 9.6 6.3 37000 55000 9.2 6.0 33000 49000 Bakelite/Nylon
7005 25 47 12 12.9 8.7 33000 49000 12.3 8.3 29000 44000 Bakelite/Nylon
7006 30 55 13 15.7 11.6 27000 42000 14.9 10.9 23000 37000 Bakelite/Nylon
7007 35 62 14 19.3 17.5 19000 33000 18.3 16.6 18000 31000 Bakelite/Nylon
7008 40 68 15 19.9 19.1 18000 31000 18.9 18.2 16000 27000 Bakelite/Nylon
7009 45 75 16 26.7 25.3 16000 27000 25.4 24.1 15000 25000 Bakelite/Nylon
7010 50 80 16 27.6 27.5 15000 25000 26.2 26.2 14000 23000 Bakelite/Nylon
7011 55 90 18 36.7 37.1 13000 21000 34.8 35.3 12000 19000 Bakelite/Nylon
7012 60 95 18 37.8 40 13000 21000 35.8 38 11000 18000 Bakelite/Nylon
7013 65 100 18 38.9 42.9 12000 19000 36.8 40.7 10000 17000 Bakelite/Nylon
7014 70 110 20 49.9 55.5 11000 18000 47.2 52.7 9000 16000 Bakelite/Nylon
7015 75 115 20 51.3 59.2 10000 17000 48.5 56.2 8500 15000 Bakelite/Nylon
7016 80 125 22 61.6 70.4 9000 16000 58.3 66.9 8000 14000 Bakelite/Nylon
7017 85 130 22 63.6 75 8500 15000 59.9 71.3 7500 13000 Bakelite/Nylon
7018 90 140 24 66.9 84 8000 14000 63.2 79.7 7000 12000 Bakelite/Nylon
7019 95 145 24 79.1 97.6 7500 13000 74.8 92.7 6500 11000 Bakelite/Nylon
7020 100 150 24 81.2 103.3 7000 12000 76.7 98 6000 10000 Bakelite/Nylon
7021 105 160 26 93.9 118.2 6500 11000 88.8 112.2 6000 10000 Bakelite/Nylon
7022 110 170 28 110.4 139.8 6000 10000 104.4 132.8 5700 9000 Bakelite/Nylon
7024 120 180 28 112.7 148.7 6000 10000 106.3 141.1 5700 9000 Bakelite/Nylon
7026 130 200 33 144.8 190.8 5700 9000 136.8 181.0 5000 8000 Bakelite/Nylon
7028 140 210 33 148.7 202.6 5000 8000 140.4 192.2 4600 7500 Bakelite/Nylon
