Product Name |

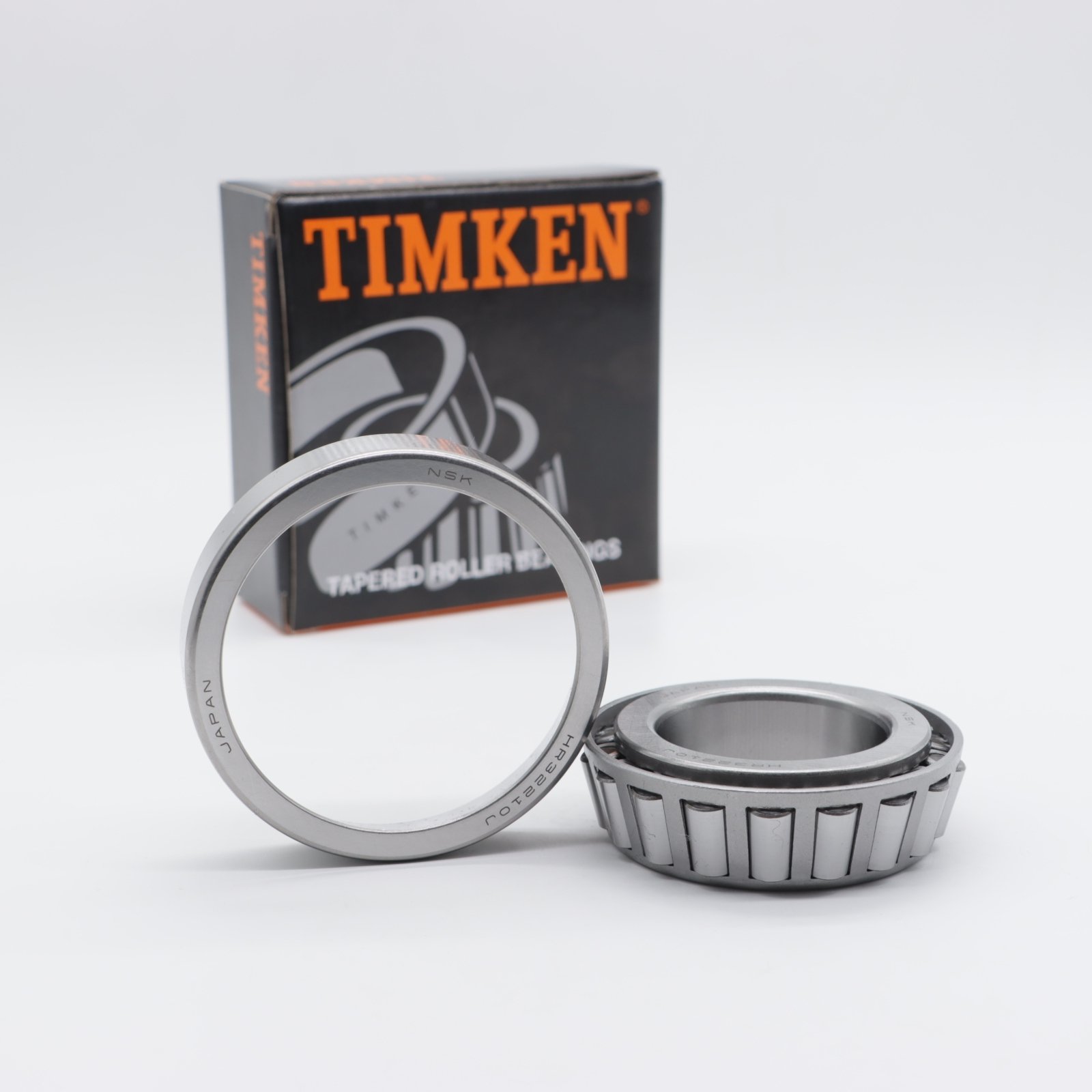

32200 Series 32210 TIMKEN Tapered Roller Bearing |
|
Number of row |
Single Row |
|
Inside Diameter |
50mm |
|
Outside Diameter |
90mm |
|
Thickness |
23mm |
|
Weight |
0.505kg |
|
Cage |
Steel Cage.copper Cage.nylon Cage |
|
Feature |
Long Life |
Bearing Composition
Characteristics
Tapered roller bearings are separated bearings, and the inner and outer rings of the bearings have tapered raceways. This kind of bearing is divided into single row, double row and four row tapered roller bearing and other different structural types according to the number of rows of rollers installed. Single row tapered roller bearing can bear radial load and single direction axial load. When the bearing bears radial load, an axial component will be generated, so when another bearing that can bear the axial force in the opposite direction is needed to balance.
1.Suitable for heavy load mechanism, or impact load mechanism;
2.Can bear radial load and axial load at the same time;
3. Tapered stick bearings will have axial force, so they need to be used in pairs;
4,.The operation speed is not suitable for high speed;
5.Good lubrication.
Single Row Tapered Roller Bearing
Double Row Tapered Roller Bearing
Four Row Tapered Roller Bearing
A single row tapered roller bearing has an outer ring, an inner ring and an inner ring assembly consisting of a set of tapered rollers enclosed by a basket cage.
The conical Angle of the outer ring raceway of a single row tapered roller bearing is between 10° and 19°, which can withstand the combined action of axial load and radial load at the same time. The larger the cone Angle, the greater the ability to bear axial load. Bearings with large tapered angles, rear code plus B, cone Angle between 25°~29°, it can bear large axial load. In addition, single-row tapered roller bearings can be adjusted during installation.
The outer ring (or inner ring) of a double row tapered roller bearing is a whole. The small end faces of the two inner rings (or outer rings) are similar, and there is an interval ring in the middle. The clearance is adjusted by the thickness of the interval ring, and the thickness of the interval ring can also be used to adjust the pre-interference of double row tapered roller bearings.
Four row tapered roller bearings, this kind of bearing performance and double row tapered roller bearings are basically the same, but than double row tapered roller bearings bear greater radial load, the limit speed is slightly lower, mainly used in heavy machinery.
Size range:
Single row tapered roller bearings:
Inner diameter size range: 20mm ~ 1270mm
Outer diameter size range: 40mm ~ 1465mm
Width: 15mm to 240mm
Double row tapered roller bearings:
Inner diameter size range: 38mm ~ 1560mm
Outer diameter size range: 70mm ~ 1800mm
Width size range: 50mm ~ 460mm
Four row tapered roller bearings:
Inner diameter range: 130mm ~ 1600mm
Outer diameter size range: 200mm ~ 2000mm
Width range: 150mm ~ 1150mm
