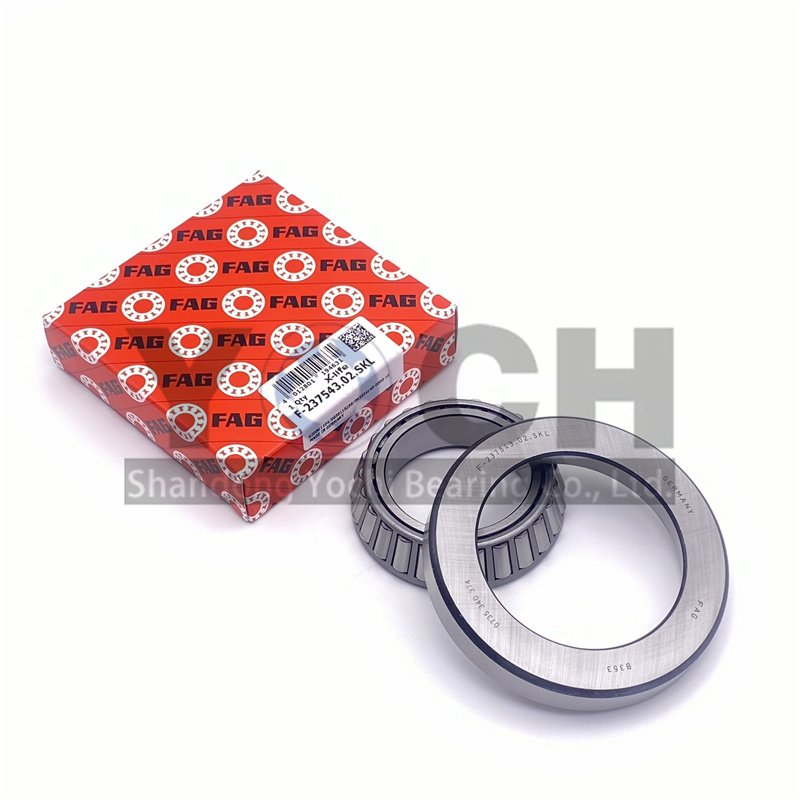

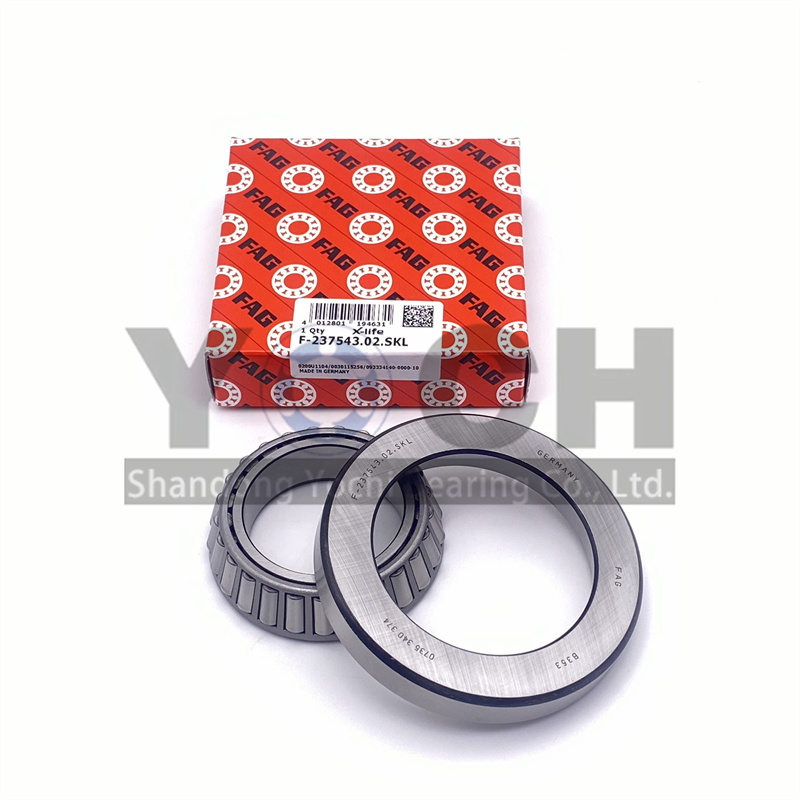

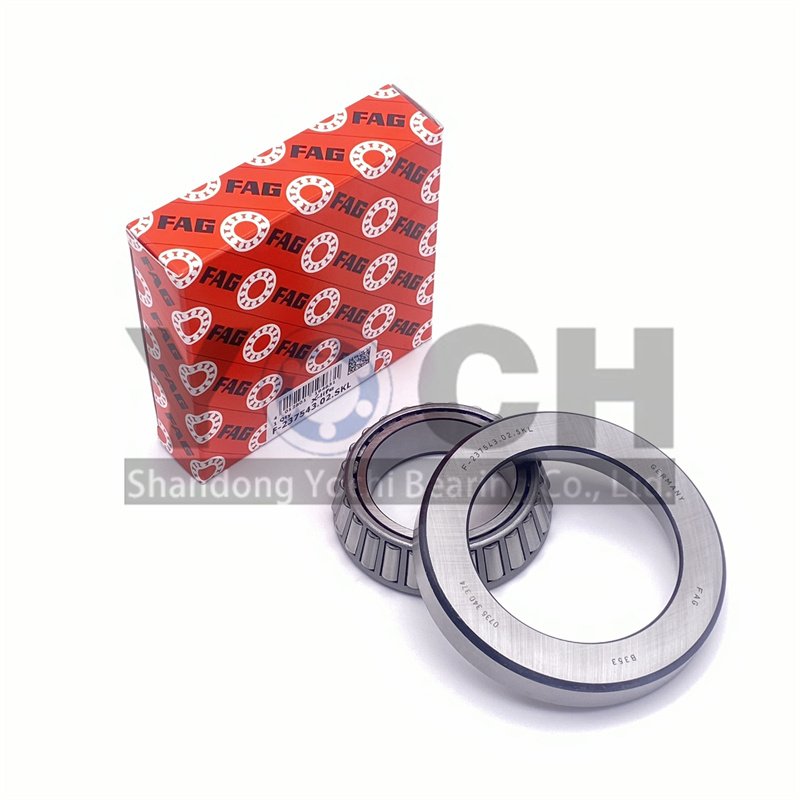

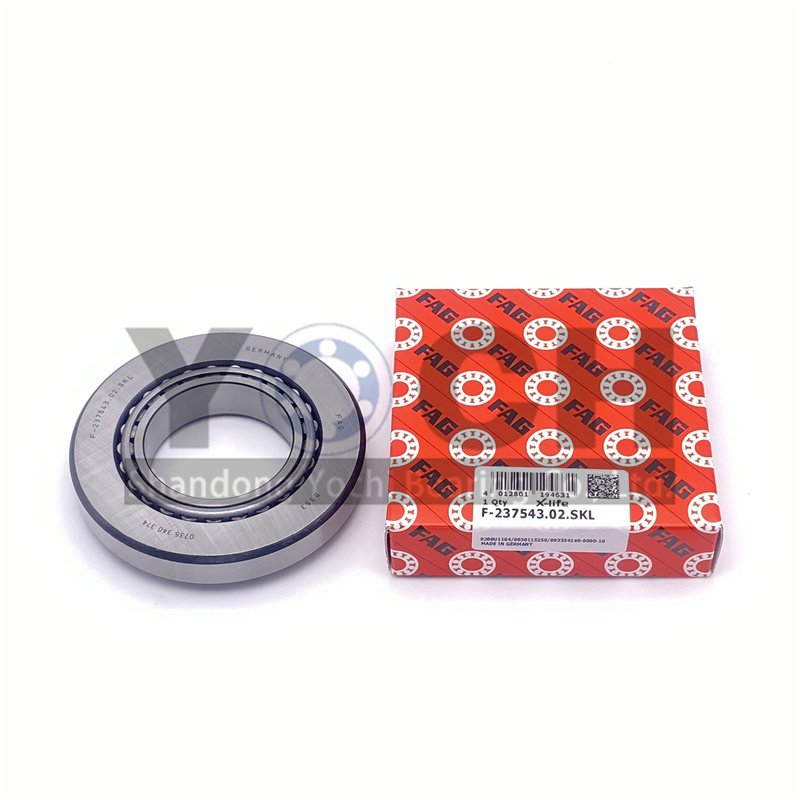

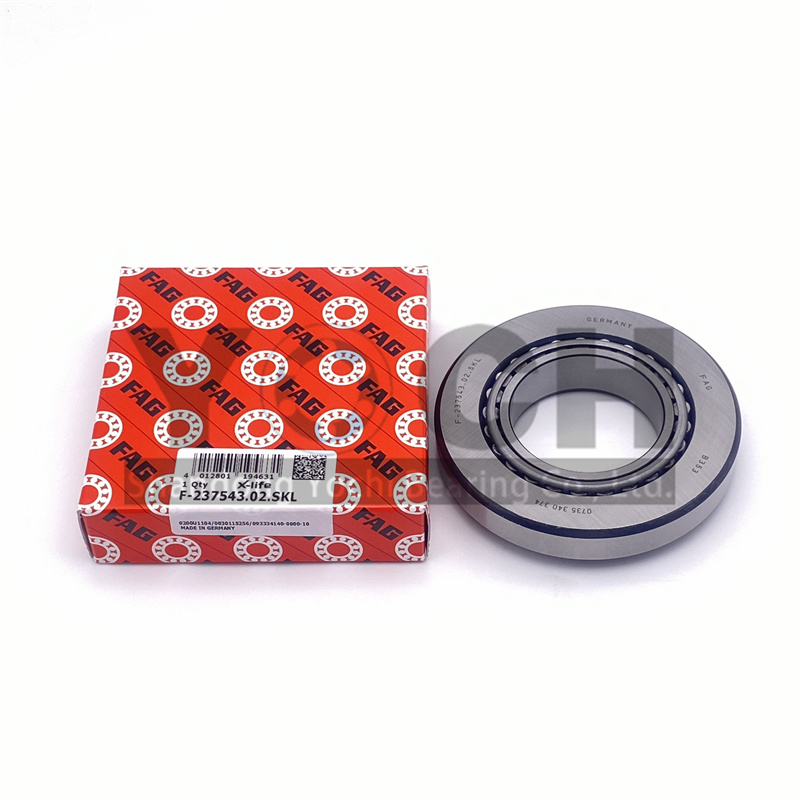

A single row tapered roller bearing has an outer ring, an inner ring and an inner ring assembly consisting of a set of tapered rollers enclosed by a basket cage.
The conical Angle of the outer ring raceway of a single row tapered roller bearing is between 10° and 19°, which can withstand the combined action of axial load and radial load at the same time. The larger the cone Angle, the greater the ability to bear axial load. Bearings with large tapered angles, rear code plus B, cone Angle between 25°~29°, it can bear large axial load. In addition, single-row tapered roller bearings can be adjusted during installation.
The outer ring (or inner ring) of a double row tapered roller bearing is a whole. The small end faces of the two inner rings (or outer rings) are similar, and there is an interval ring in the middle. The clearance is adjusted by the thickness of the interval ring, and the thickness of the interval ring can also be used to adjust the pre-interference of double row tapered roller bearings.
Four row tapered roller bearings, this kind of bearing performance and double row tapered roller bearings are basically the same, but than double row tapered roller bearings bear greater radial load, the limit speed is slightly lower, mainly used in heavy machinery.
Characteristics of tapered roller bearings:
1. High speed, high precision
2.High rigidity, impact resistance, vibration resistance
3.Can bear large axial load
4.With high rolling contact fatigue strength
5.With high hardness and high mechanical strength, high wear resistance
6. High size performance
