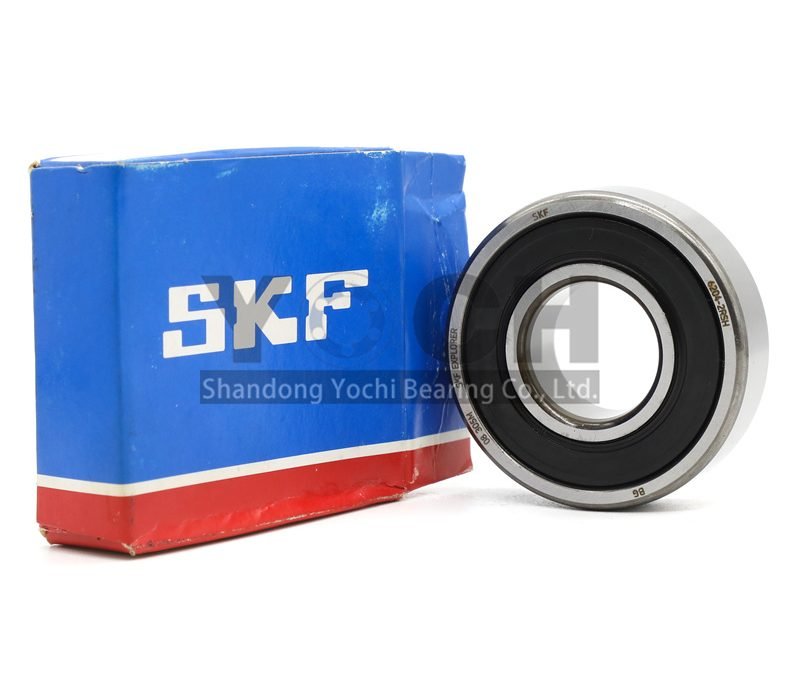

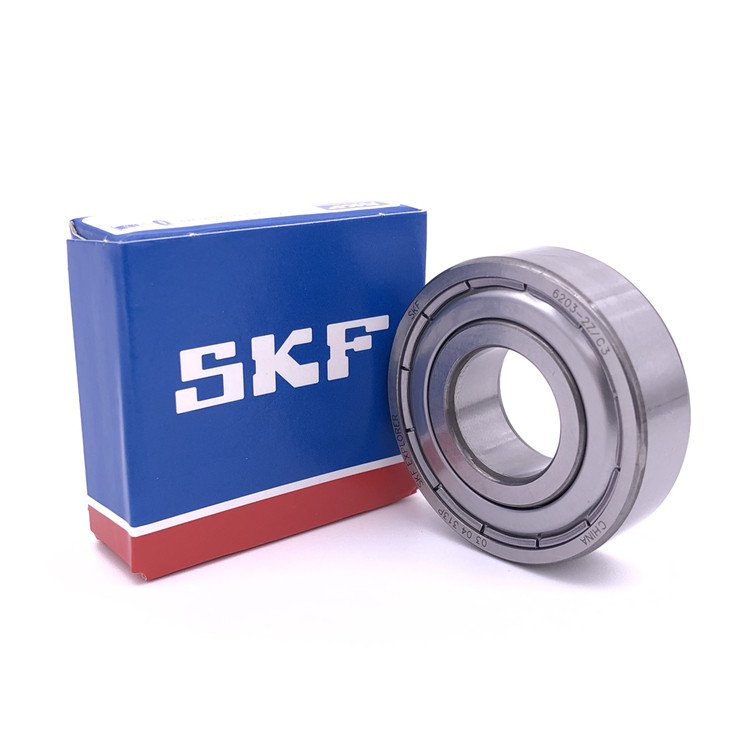

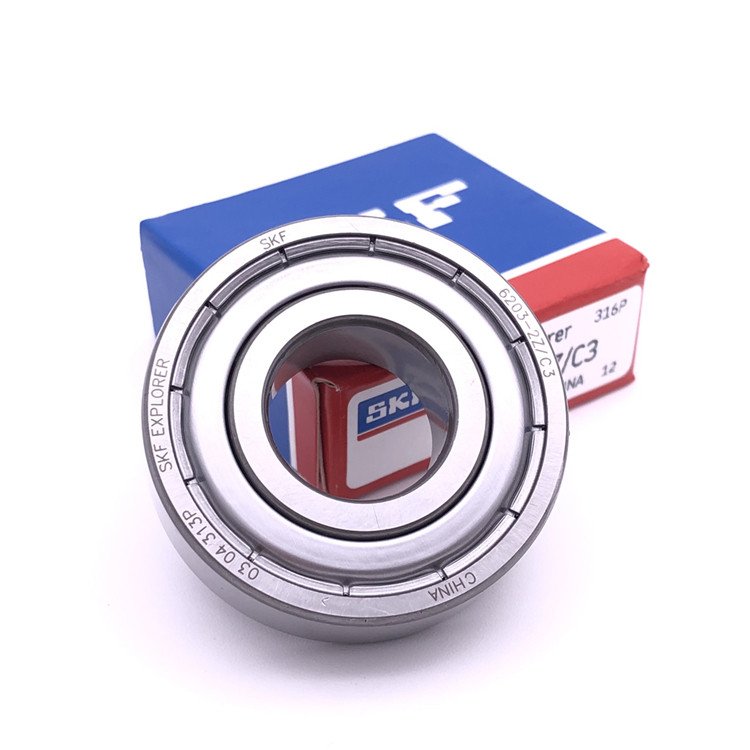

Bearing Supplier SKF 6203-2Z Deep Groove Ball Bearing

A:In the same type of rolling bearing under the same working conditions, the larger the size is, the longer the life is, is right, according to the pressure theorem, the smaller the contact surface is, the greater the pressure (pressure) is (such as jack), similarly, the small rolling bearing inside and outside the longitude is very small, the ball direct longitude is small, and the bearing inside and outside the contact surface is small, the greater the force it bears, It and the bearing inside and outside the friction force is also large; Large rolling bearing inside and outside by the increase, the ball by the increase and the number of direct, and the bearing inside and outside by the contact surface will increase, the ball to bear the force is reduced, it and the bearing inside and outside by the friction force is small, so high-power equipment with large bearings.

A:It is generally an interference fit. According to the direction and nature of the load acting on the bearing and which side of the inner and outer ring rotation, the load borne by each ring can be divided into rotating load, static load or non-directional load. The ferring bearing rotating load and non-directional load should be static fit (interference fit), and the ferring bearing static load can be transitional fit or dynamic fit (gap fit). When bearing load is large or bearing vibration and impact load, its interference must increase. When using hollow shaft, thin-wall bearing box or light alloy, plastic bearing box, also must increase the amount of interference. When high rotation is required, high-precision bearings should be used, and the dimensional accuracy of shaft and bearing box should be improved to avoid excessive interference. If the interference is too large, the geometry accuracy of the shaft or bearing box may affect the geometry of the bearing ring, thus impairing the rotation accuracy of the bearing. Non-separation type bearing (such as deep groove ball bearing) inner and outer ring are static fit, bearing installation, disassembly is extremely inconvenient, it is best to use a dynamic fit of one side of the inner and outer ring.

A:Bearing dust cover materials are iron, rubber coated iron, stainless steel plate, but the most commonly used or spcc cold plate. SPCC was originally the Japanese standard (JIS) for the general use of cold rolled carbon steel sheet and steel strip name, now many countries or enterprises directly used to represent their own production of similar steel (such as Baosteel Q/BQB402 standard SPCC). Chemical composition of SPCC Table C: ≤0.10 Si: ≤0.05 Mn: ≤0.50 P: ≤0.035 S: ≤0.025
