The basic deep groove ball bearing consists of an outer ring, an inner ring, a set of steel balls and a set of retainers.
Deep groove ball bearing type has single row and double row two kinds, deep groove ball structure is divided into sealed and open two kinds of structure, open refers to the bearing does not have a sealed structure, sealed deep groove ball is divided into dust-proof seal and oil-proof seal.
Dust-proof seal cover material for steel plate stamping, only play a simple prevent dust into the bearing raceway.
Oil-proof type is contact type oil seal, which can effectively prevent grease overflow in bearing.
Features:
Deep groove ball bearing are simple in design, non-separable, suitable for high and even very high speeds and are robust in operation, requiring little maintenance.
Main applications of deep groove ball bearing:
Low-power motors, automobile and tractor gearboxes, machine tool gearboxes, general machines, tools, etc.
What is deep groove in ball bearing
Deep groove ball bearings are the most widely used bearing type and are particularly versatile. They have low friction and are optimized for low noise and low vibration which enables high rotational speeds.
What are deep groove ball bearings made of?
Seals – deep groove bearings are available in both sealed and open configurations. Balls – Balls are usually made from stainless steel (X65Cr13). However ceramic balls (silicon nitride) are available for demanding applications.

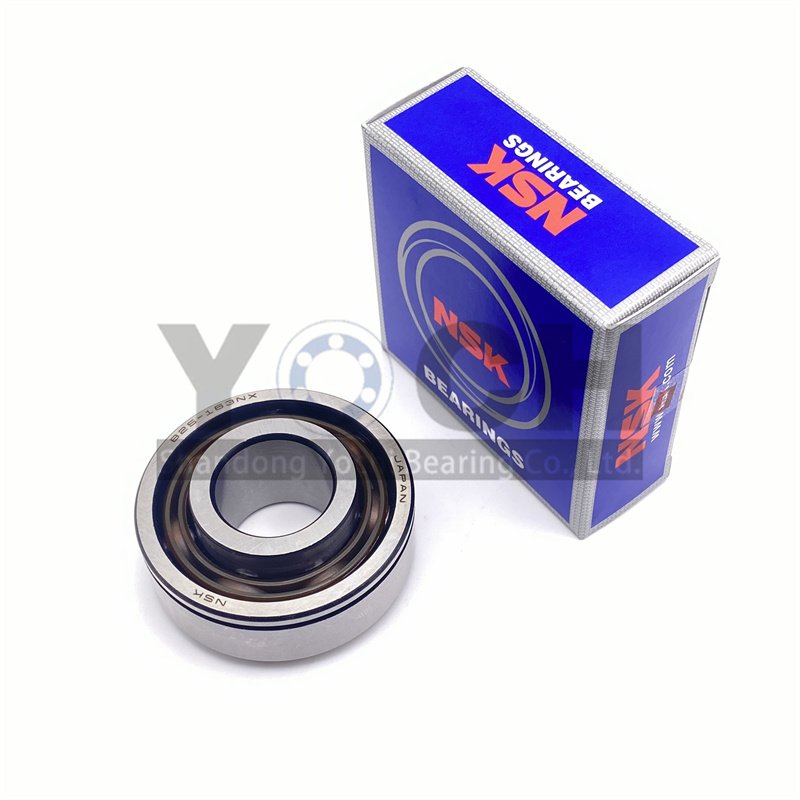

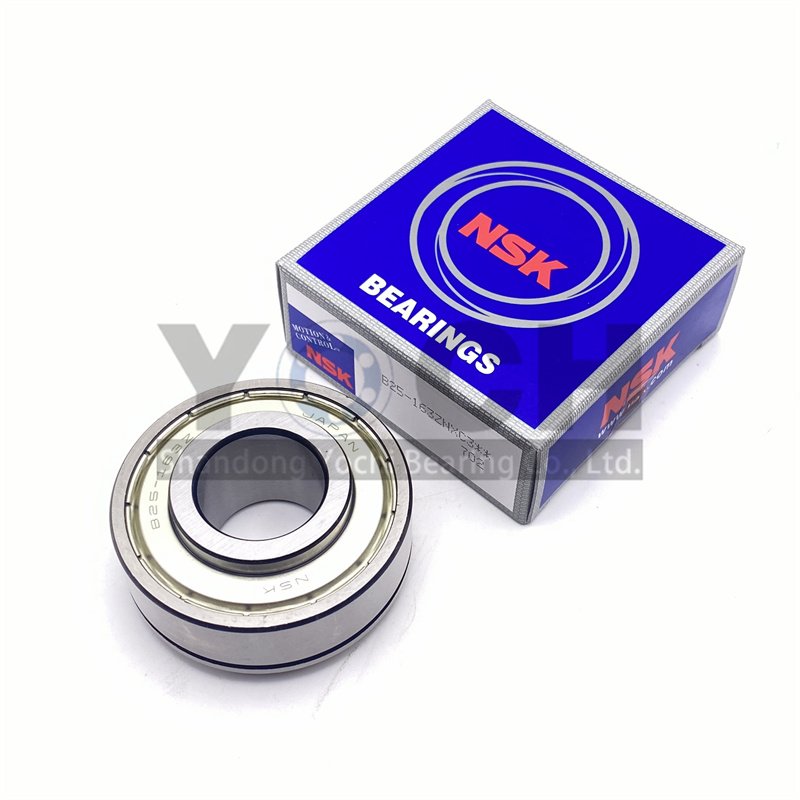

Customized Bearing NSK B25-163 Deep Groove Ball Bearing
