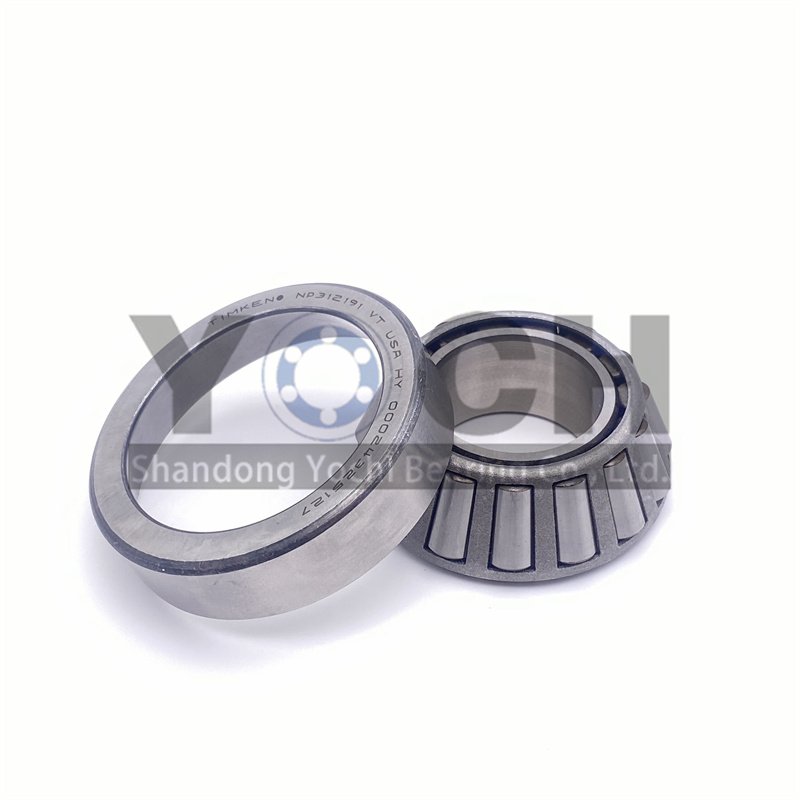

Original Factory TIMKEN LM503149/LM501310 Tapered Roller Bearing

What is a taper roller bearing used for?

Tapered Roller Bearings are designed to reduce friction and, in turn, reduce the heat that can cause bearing structures to fail. This bearing is used in many industrial applications and is optimal for those undergoing excess loads.
Tapered roller bearings contain an inner ring, outer ring, and a number of tapered rollers. Looked at individually, the inner and outer bearing rings are also tapered, resembling a cone segment. Due to the large surface area contact, tapered roller bearings are able to withstand heavy axial and radial loads.
The most common material for ball bearing, roller bearing, and tapered roller bearing is chrome SAE 52100 bearing steel. This bearing can be made by high carbon content of 1.5% and has Rockwell hardness of about 64 HRC.
Tapered roller bearings are typically used in gearboxes, hoisting equipment, rolling mills and machines in the mining industry. Four row tapered roller bearings are used almost exclusively in work roll applications such as rolling mills.

A single row tapered roller bearing has an outer ring, an inner ring and an inner ring assembly consisting of a set of tapered rollers enclosed by a basket cage.
The conical Angle of the outer ring raceway of a single row tapered roller bearing is between 10° and 19°, which can withstand the combined action of axial load and radial load at the same time. The larger the cone Angle, the greater the ability to bear axial load. Bearings with large tapered angles, rear code plus B, cone Angle between 25°~29°, it can bear large axial load. In addition, single-row tapered roller bearings can be adjusted during installation.
