Description：

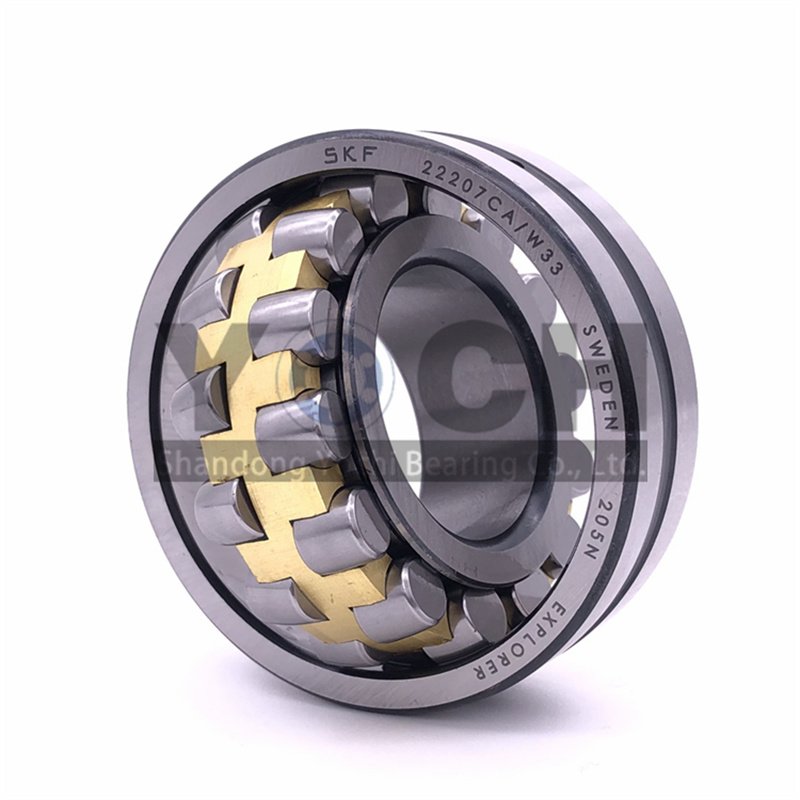

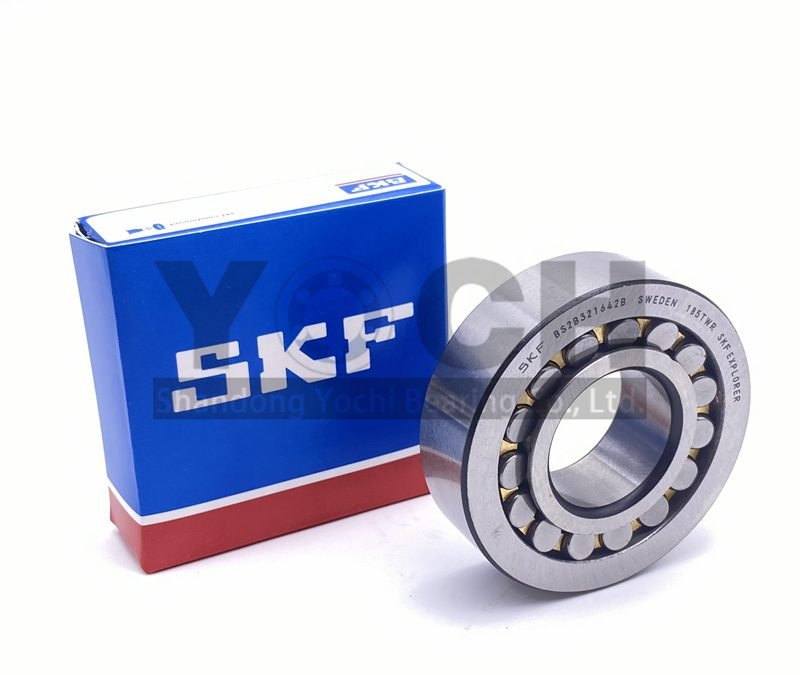

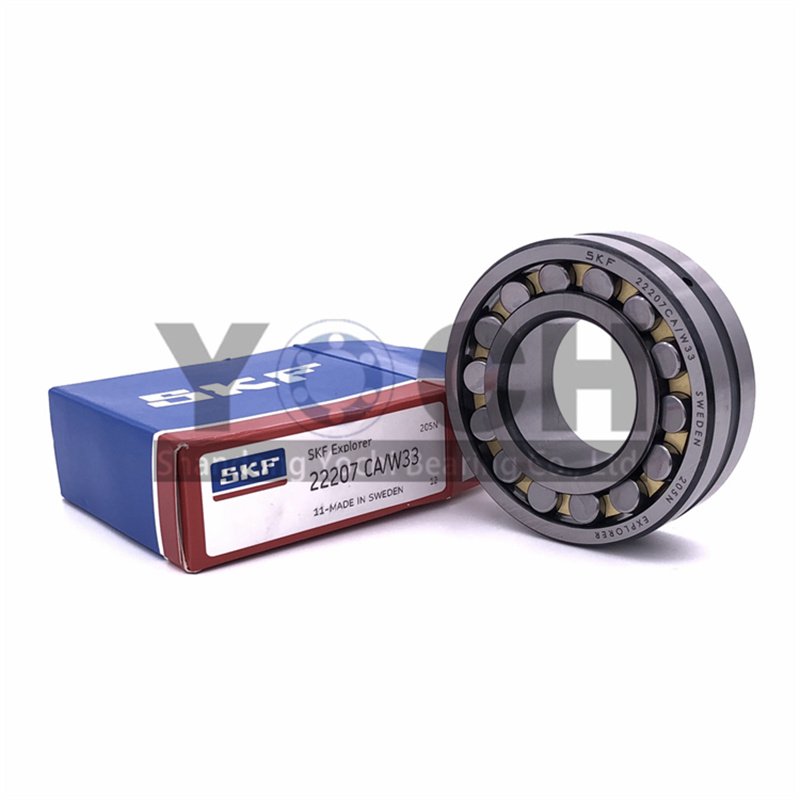

The Spherical Roller Bearing has a double row of rollers, with one common spherical raceway in the outer ring and two raceway in the inner ring and inclined at an Angle relative to the bearing axis. This ingenious structure makes it self-aligning, so it is not easy to be affected by the Angle of shaft and bearing box on the error or shaft bending, suitable for installation error or shaft deflection caused by Angle error. The bearing can bear radial load as well as bidirectional axial load.
Installation method:
The inner hole of the spherical roller bearing has two installation methods: cylindrical and conical, and the conical tapered hole is 1:12 and 1:30. By unloading the sleeve, the bearing can be installed on the optical shaft or stepped shaft conveniently and quickly. The cylindrical inner hole can also be installed on the tapered shaft with an inner taper sleeve.
