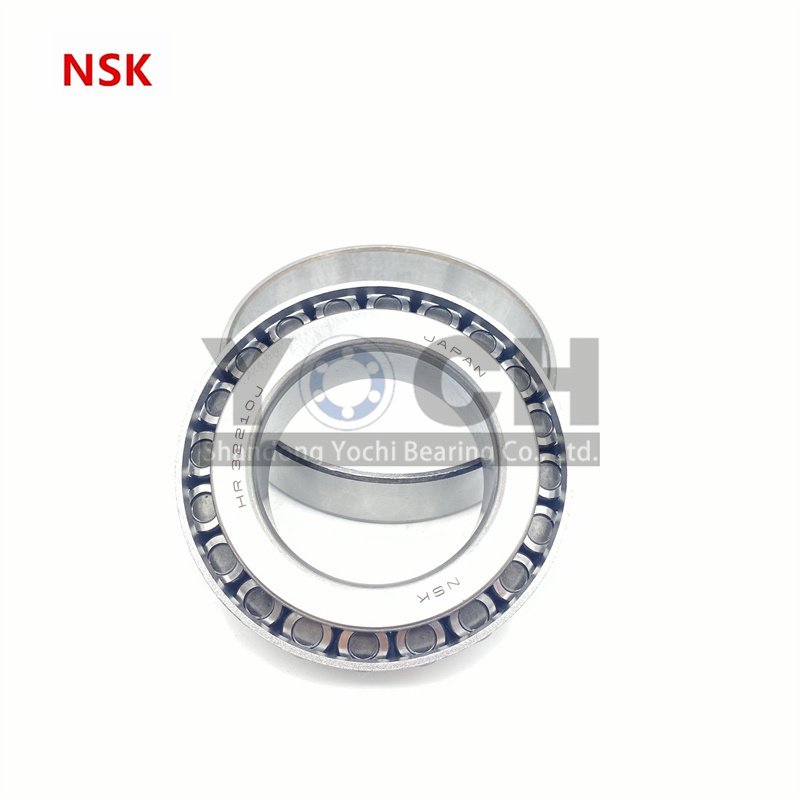

Hard Gear Surface Reducer Bearing NSK HR32221J Tapered Roller Bearing
13/07/2023HR32219J NSK Roller Bearing Automotive Differential Tapered Roller Bearings Car Differentical Bearing
13/07/2023
What is a taper roller bearing used for?
Tapered Roller Bearings are designed to reduce friction and, in turn, reduce the heat that can cause bearing structures to fail. This bearing is used in many industrial applications and is optimal for those undergoing excess loads.
Tapered roller bearings contain an inner ring, outer ring, and a number of tapered rollers. Looked at individually, the inner and outer bearing rings are also tapered, resembling a cone segment. Due to the large surface area contact, tapered roller bearings are able to withstand heavy axial and radial loads.
The most common material for ball bearing, roller bearing, and tapered roller bearing is chrome SAE 52100 bearing steel. This bearing can be made by high carbon content of 1.5% and has Rockwell hardness of about 64 HRC.
tapered roller bearings are typically used in gearboxes, hoisting equipment, rolling mills and machines in the mining industry. Four row tapered roller bearings are used almost exclusively in work roll applications such as rolling mills.
The angled and tapered shape of tapered roller bearings minimizes the stress caused by a combination of radial and axial loads. Radial and axial loads often combine to create different loads upon a bearing assembly. The ability to handle angular loads and changing angular loads – makes tapered roller bearings indispensable to various technical designs and industries. The tapered shape essentially concentrates radial and axial loads into a unified load that is more easily harnessed. Which angular loads can be harnessed depends on the precise angle of the tapered bearing. They can harness a comprehensive range of forces by configuring two or even more tapered bearings.
The steepness of the roller bearing's gradient increases the thrust/axial load it can handle, while a shallow angle increases the radial load capacity. As the radial load increases, the bearing experiences more stress against the sides of the bearing raceways. A more shallow angle minimizes stress, reducing pressure on the rollers. Increased axial load contributes to the stress applied to the top of the rollers. A steeper angle will distribute the pressure more towards the center of the bearing and less onto the rollers themselves.
