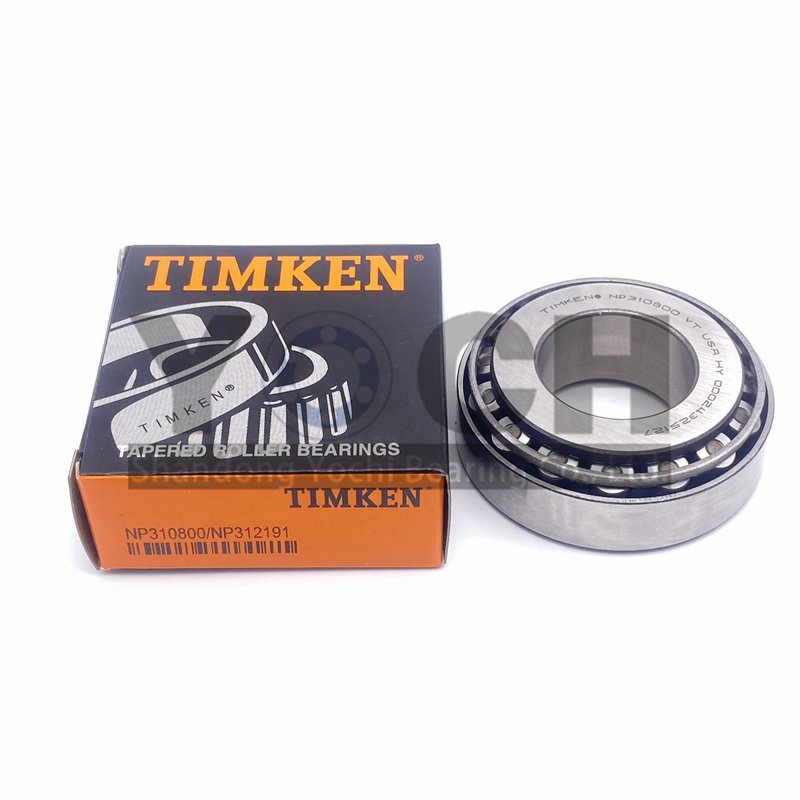

Bearing Manufacturer Supply TIMKEN JP17049/10 Inch Tapered Roller Bearing
15/05/2024KOYO Manufacturer Original Brand T7FC045 Inch Tapered Roller Bearing
15/05/2024
Tapered roller bearings are separated bearings, and the inner and outer rings of the bearings have tapered raceways. This kind of bearing is divided into single row, double row and four row tapered roller bearings and other different structural types according to the number of rows of rollers installed.
Single row tapered roller bearings can bear radial loads and single direction axial loads. When the bearing bears radial load, an axial component will be generated, so it needs another bearing that can bear the axial force in the opposite direction to balance it.
This type of bearing is equipped with a round platform roller, the roller by the inner ring of the large rim.
Single row bearings can bear radial load and unidirectional axial load, and double row bearings can bear radial load and bidirectional axial load.Suitable for bearing heavy load and shock load.
According to the different contact Angle (α), it can be divided into three types: small cone Angle, middle cone Angle and large cone Angle. The larger the contact Angle is, the greater the axial load capacity is.
Outer ring and inner assembly (inner ring and roller and cage assembly) can be separated for easy assembly and disassembly.
