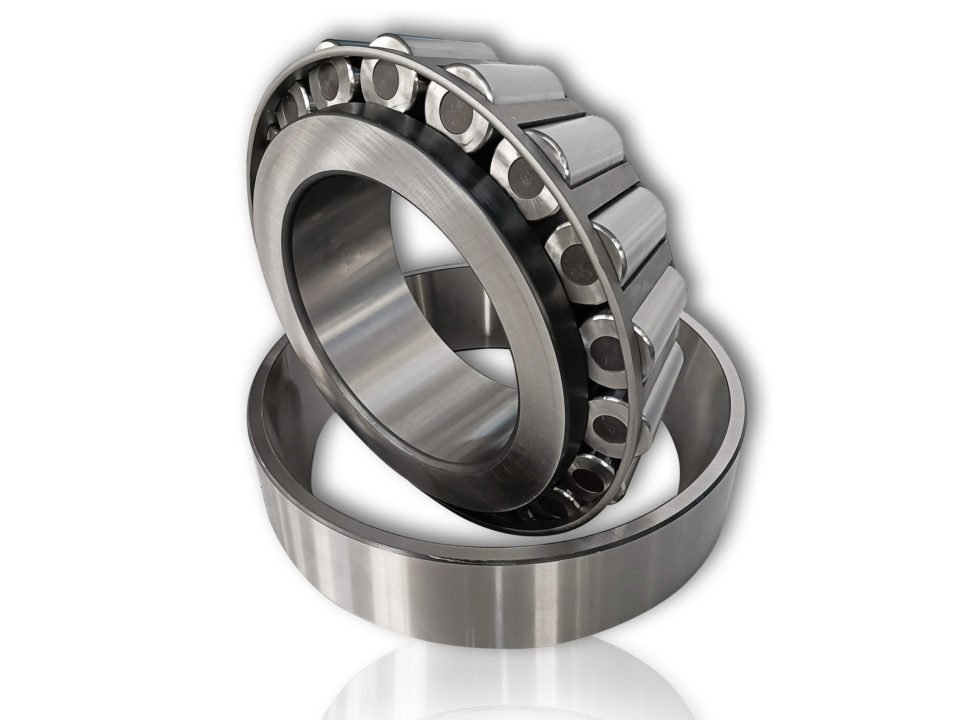

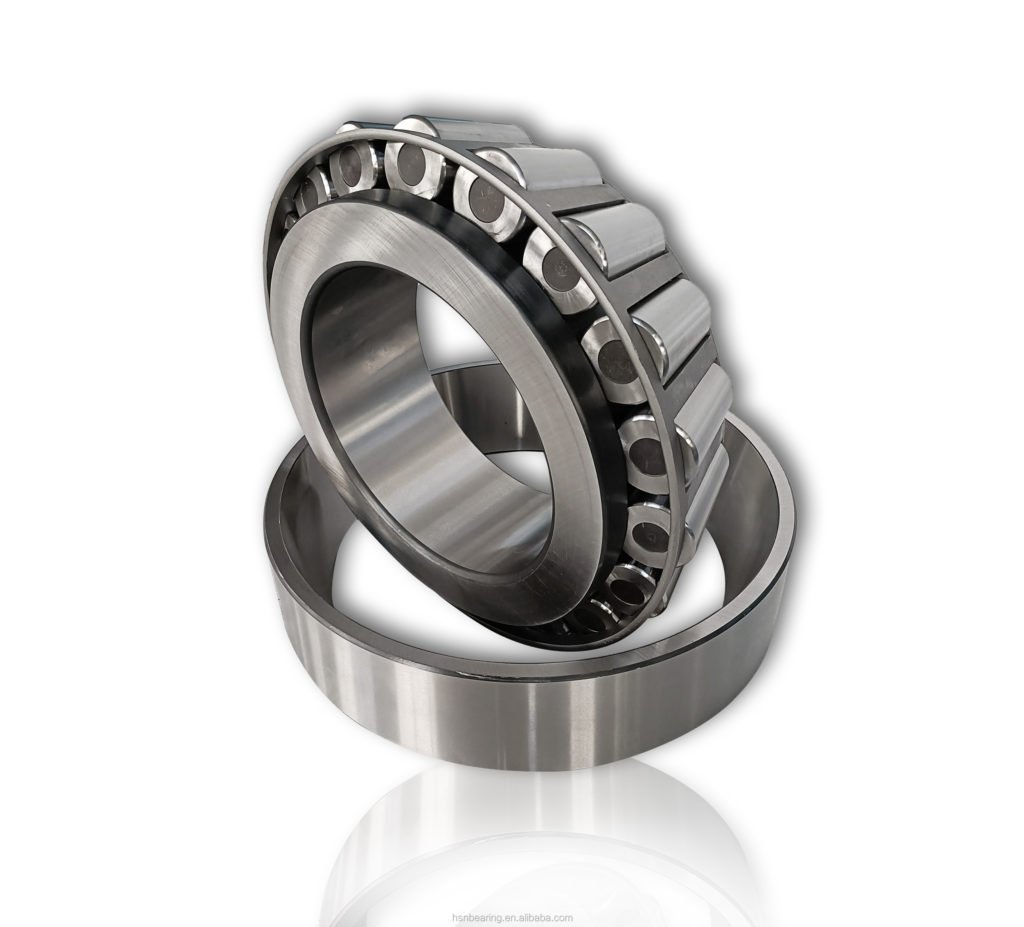

"Tapered roller bearings feature a cup and cone assembly. The cup is comprised of the outer ring and the cone assembly consists of inner ring, rollers, and cage. This bearing construction accommodates combined loads and provides low friction during operation. By adjusting one single row tapered roller bearing against a second tapered roller bearing and applying a preload, a rigid bearing application can be achieved."
| BEARING NO. | DIMENSIONS (MM) | WEIGHT(KG) | ||||
| d | D | B | C | T | ||
| 30203 | 17 | 40 | 12 | 11 | 13.25 | 0.08 |
| 30204 | 20 | 47 | 14 | 12 | 15.25 | 0.127 |
| 30205 | 25 | 52 | 15 | 13 | 16.25 | 0.154 |
| 30206 | 30 | 62 | 16 | 14 | 17.25 | 0.241 |
| 30207 | 35 | 72 | 17 | 15 | 18.25 | 0.344 |
| 30208 | 40 | 80 | 18 | 16 | 19.75 | 0.435 |
| 30209 | 45 | 85 | 19 | 16 | 20.75 | 0.495 |
| 30210 | 50 | 90 | 20 | 17 | 21.75 | 0.55 |
| 30304 | 20 | 52 | 15 | 13 | 16.25 | 0.169 |
| 30305 | 25 | 62 | 17 | 15 | 18.25 | 0.272 |
| 30306 | 30 | 72 | 19 | 16 | 20.75 | 0.408 |
| 30307 | 35 | 80 | 21 | 18 | 22.75 | 0.52 |
| 30308 | 40 | 90 | 23 | 20 | 25.25 | 0.72 |
| 32206 | 30 | 62 | 20 | 17 | 21.25 | 0.292 |
| 32207 | 35 | 72 | 23 | 19 | 24.25 | 0.448 |
| 32208 | 40 | 80 | 23 | 19 | 24.75 | 0.525 |
| BEARING NO. | DIMENSIONS(MM) | WEIGHT(KG) | ||||
| d | D | B | C | T | ||
| LM11749/10 | 17.462 | 17.462 | 14.605 | 10.668 | 13.843 | 0.084 |
| LM12749/10 | 21.986 | 45.237 | 16.637 | 12.065 | 15.494 | 0.119 |
| LM11949/10 | 19.05 | 45.237 | 16.637 | 12.065 | 15.494 | 0.122 |
| M12649/10 | 21.43 | 50.005 | 18.288 | 13.97 | 17.526 | 0.169 |
| L44643/10 | 25.4 | 50.292 | 14.732 | 10.688 | 14.224 | 0.13 |
| L44649/10 | 26.998 | 50.292 | 14.732 | 10.688 | 14.224 | 0.12 |
| L45449/10 | 29 | 50.292 | 14.732 | 10.688 | 14.224 | 0.113 |
| LM48548/10 | 34.925 | 65.088 | 18.288 | 13.97 | 18.034 | 0.249 |
| LM67048/10 | 31.75 | 59.131 | 16.764 | 11.811 | 15.875 | 0.182 |
| L68149/10 | 35 | 59.131 | 16.764 | 11.938 | 15.875 | 0.167 |
| L68149/11 | 35 | 60 | 16.764 | 11.938 | 15.875 | 0.176 |
| LM603049/11 | 45.242 | 77.788 | 19.842 | 15.08 | 19.842 | 0.378 |
| JL69349/10 | 38 | 63 | 17 | 13.5 | 17 | 0.204 |
| LM501349/10 | 41.275 | 73.431 | 19.812 | 14.732 | 19.588 | 0.335 |
| LM102949/10 | 45.242 | 73.431 | 19.812 | 15.748 | 19.812 | 0.43 |

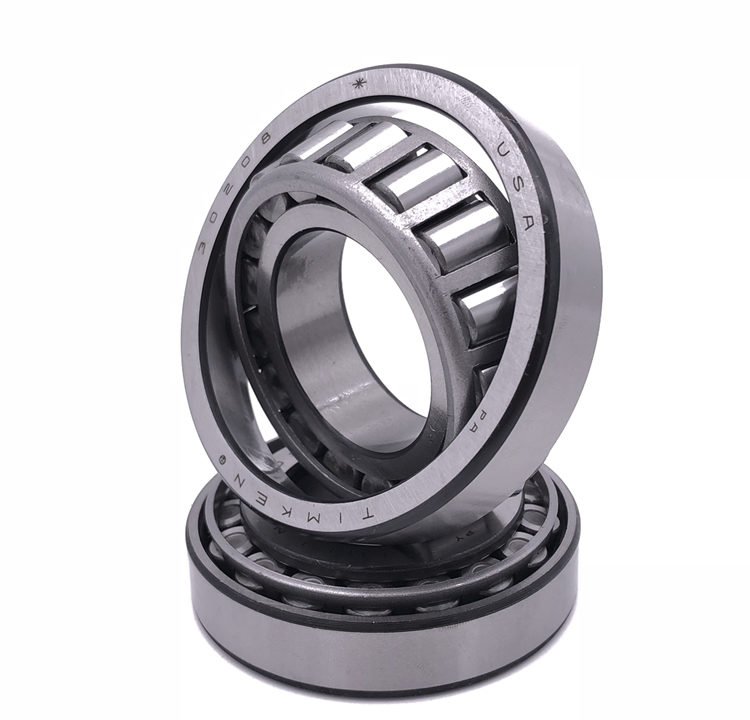

REAL SHOT OF THE PRODUCT
Hot Products
- Date
- 28/04/2021
China manufacturer low voice agricultural machinery bearing H913842/10 taper roller bearing- Date
- 27/08/2021
China manufacture single row tapered roller bearings 39590/39520 SET408 tapered roller bearings rodamientos- Date
- 10/09/2021
China manufacture single row tapered roller bearings 39590/39520 SET408 tapered roller bearings rodamientos- Date
- 06/07/2021
china manufacture high quality tapered roller bearing 462/453X 57.15*104.775*30.162mm inch size tapered roller bearings- Date
- 03/06/2021
30221 tapered roller bearings 105*190*39.5mm- Date
- 20/05/2021
China Factory Original Timken Tapered Roller Bearing Roulement Set 3 M12649/M12610 Auto Spare Parts Wheel Hub Rolling Bearing- Date
- 03/06/2021
china factory manufacture tapered roller bearing 30224 120*215*44mm rolling bearings- Date
- 07/07/2021
china factory hot same tapered roller bearing 469/453x 67.15*104.775*30.162mm inch size tapered roller bearing
FAQs of Tapered Roller Bearing
1Are you trading company or manufacturer ?
We are factory. Welcome to visit our factory.
2Do you provide Free Samples ?
Yes, we could offer you free samples, but do not pay the cost of freight.
3What's the MOQ ?
The MOQ depends on bearing's model number and price.Usually the total cost will be $1000 at least.
4What's your Payment Terms ?
We highly recommend Trade Assurance order on alibaba. It is safe, convenient, and can make sure the on time delivery.
1 Trade Assurance Order
2 T/T (Bank Wire)
3 Western Union
4 Money Grame
5 Paypal
5How long is your lead-time?
Generally it is 2 to 4 days if the goods are in stock, or it will be about 6 to 15 days depends on quantity.
