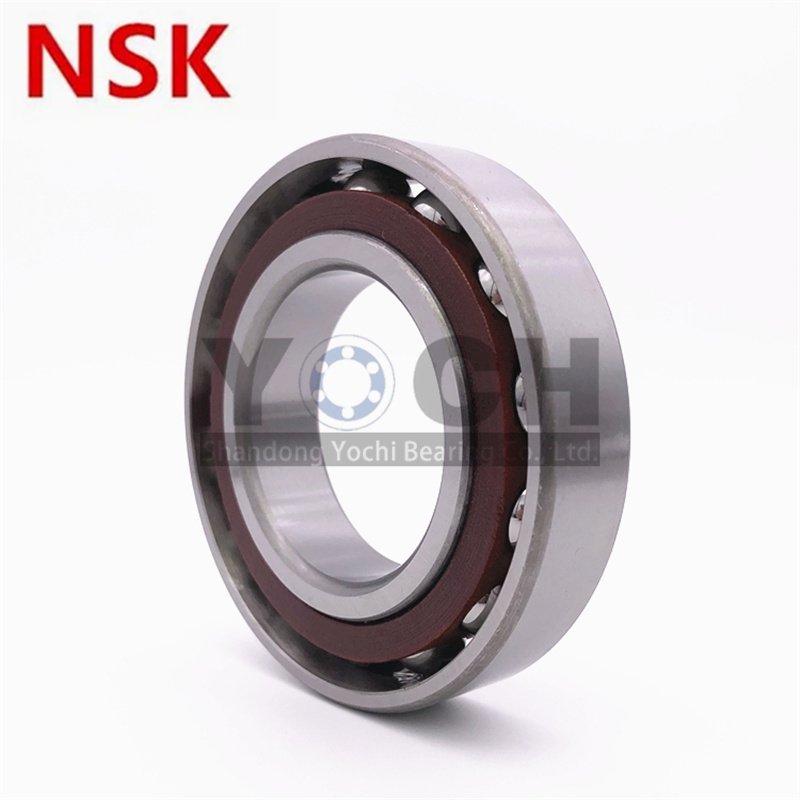

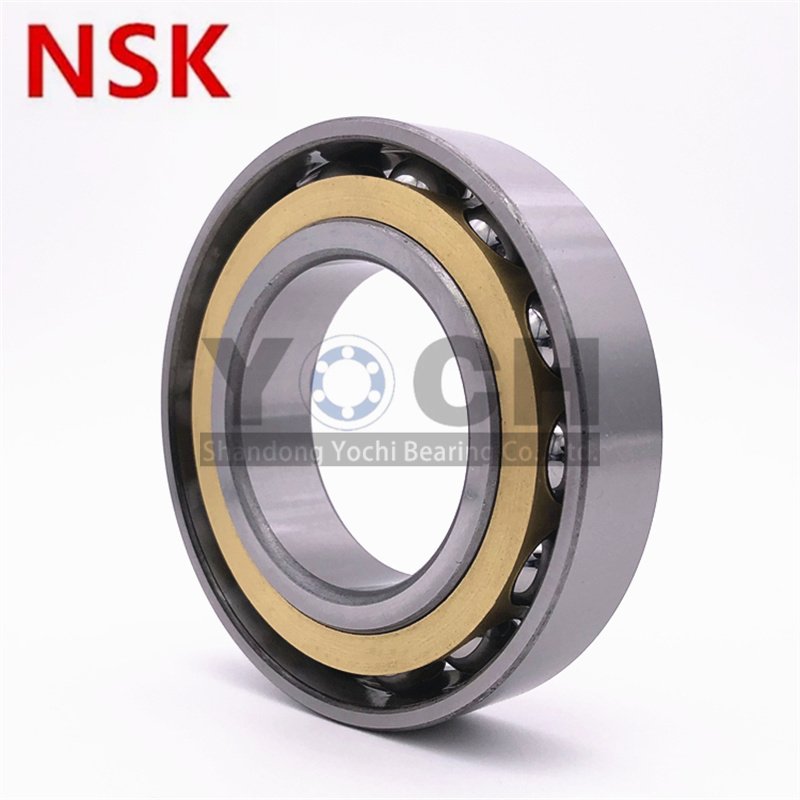

7330AC Angular Contact Ball Bearing NSK Vibrating Screen

The angular contact ball bearings can undertake both the radial load and axial load in the mean-time. Such bearings can work at a high rotational speed. The bigger the touching angle is, the greater the bearing's load capacity is.
Angular contact ball bearings can bear radial load and axial load at the same time.Able to work at high speed.The higher the contact Angle, the higher the axial bearing capacity.The contact Angle is the Angle between the contact line of the ball and raceway in the radial plane and the vertical line of the bearing axis.High precision and high speed bearings are usually 15 degrees of contact.The contact Angle will increase under axial force.

Structure form:

1. Separation type angular contact ball bearing
This bearing code is S70000, its outer ring roller side has no lock, can be separated from the inner ring, cage, ball assembly, so can be installed separately. This kind of micro bearing with inner diameter less than 10mm is used for gyro rotor, micro motor and other devices that have higher requirements for dynamic balance, noise, vibration and stability.

2. Non-separated angular contact ball bearings
The ring groove of this kind of bearing has a lock, so the two rings can not be separated. It can be divided into three types according to the contact Angle:
① Contact Angle α=40°, suitable for bearing large axial load;
② Contact Angle α=25°, mostly used for precision spindle bearings;
③ Contact Angle α=15°, mostly used for large size precision bearings.

3. Configure angular contact ball bearings in pairs
Angular contact ball bearings configured in pairs are used for bearing both radial load and axial load, and can also bear pure radial load and axial load in any direction. This kind of bearing is provided to the user by the manufacturer according to certain pre-load requirements. When the bearing is installed on the machine, the clearance in the bearing is completely eliminated, and the ring and the ball are in a pre-tightening state, thus improving the steel of the combination bearing.
